Description

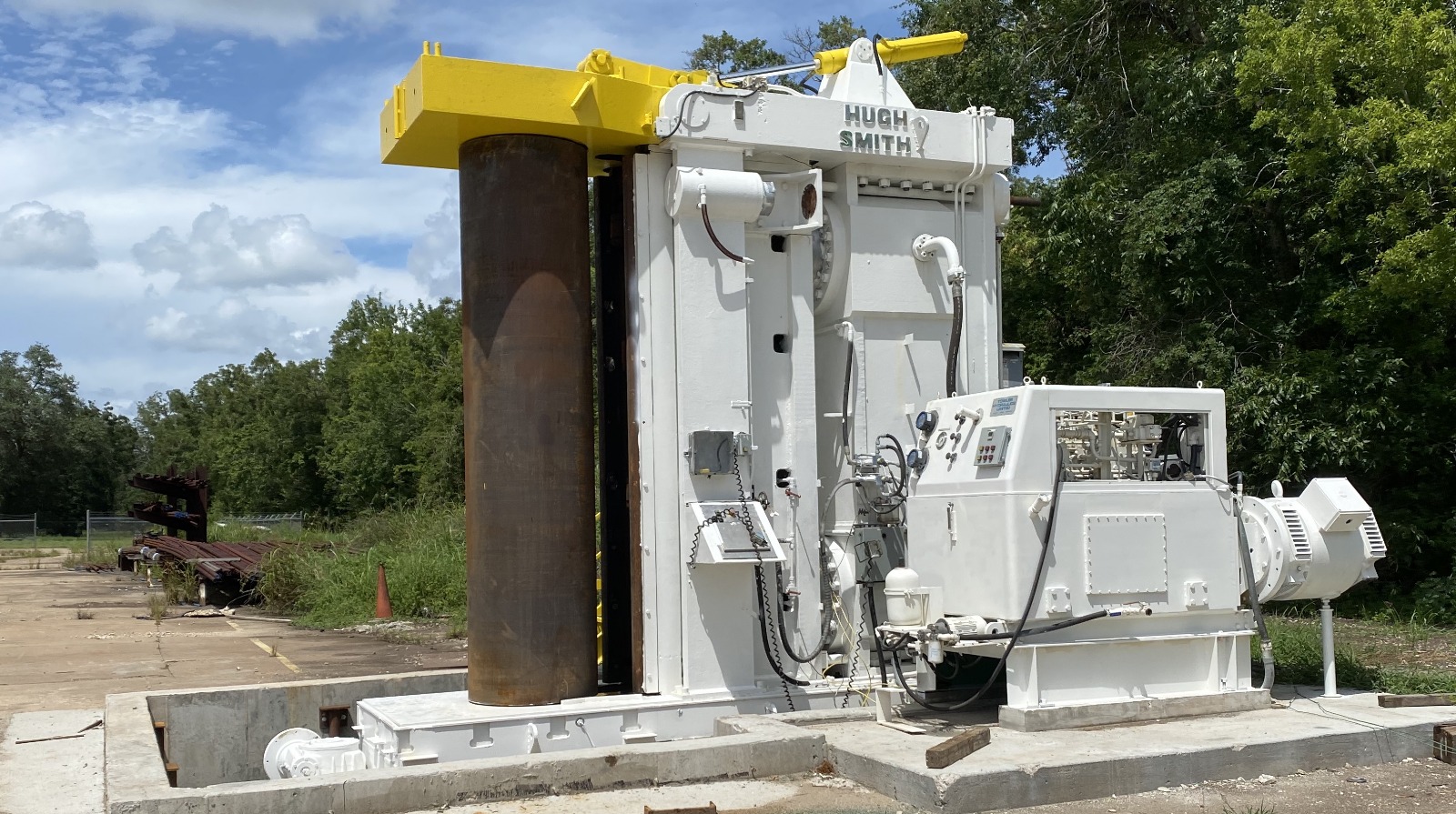

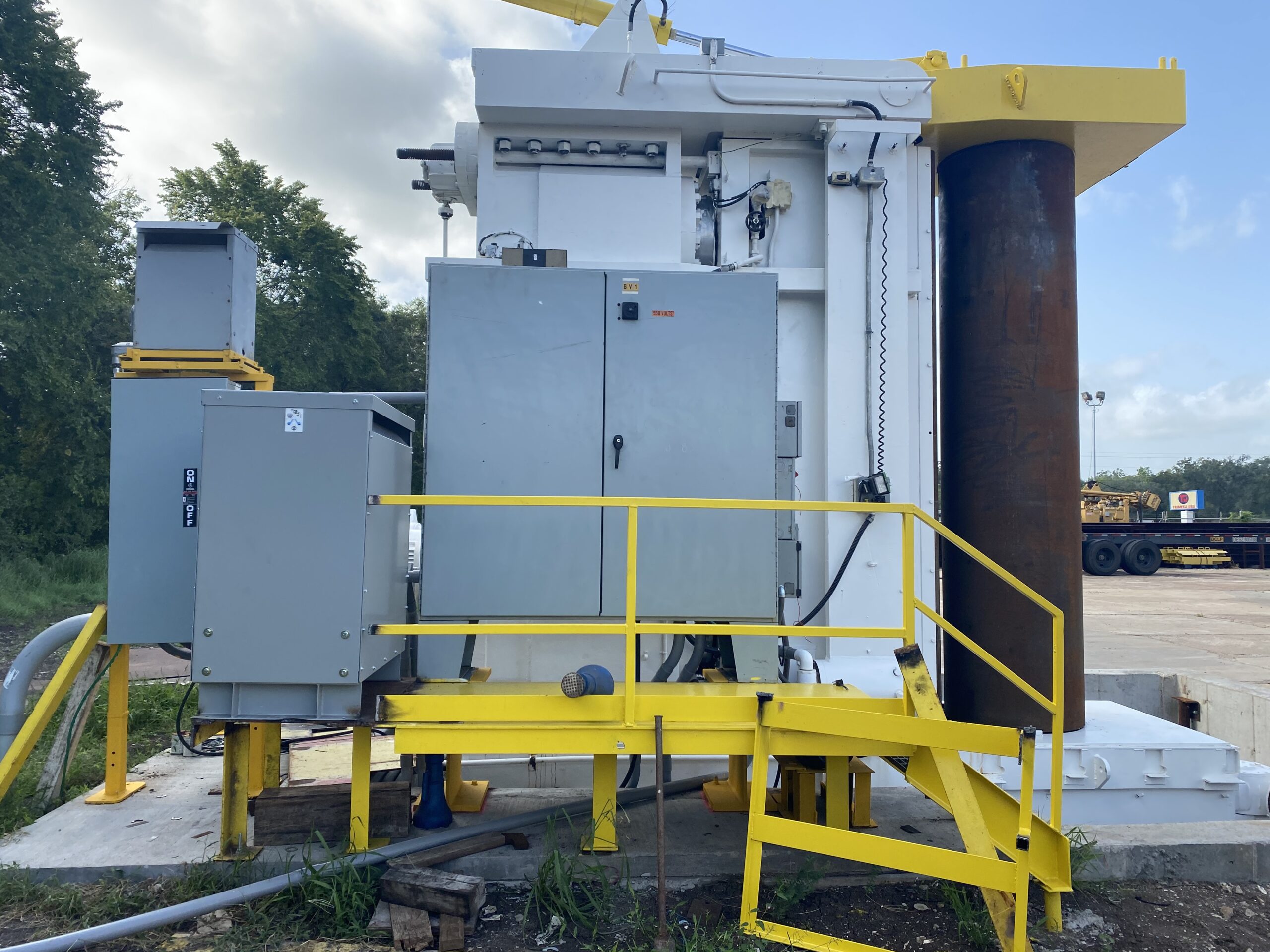

The Hugh Smith Vertical Plate Bending Machine is designed for forming cylinders of various diameters, making it ideal for producing pressure vessels, boilers, nuclear plant components, and legs or piles for oil platforms and modular structures.


• • 3,000 Ton, handling plate width 13′ and thicknesses up to 7.87″ cold.
  • Designed to require minimal crane involvement while occupying a small footprint. Once the plate is loaded, no further crane attendance is needed.
  • Complete cylinders can be formed in 20 minutes or less, depending on diameter.
  • Plate edge pre-setting is easily achieved using the machine’s direct-acting hydraulic force.
  • Adjustable bending centers provide optimal conditions for processing a wide range of plate sizes and thicknesses.
  • Re-rounding and weld seam correction can be performed with ease.
  • Capable of forming cones, straightening plate, and—when equipped with a nose bar—performing heavy-duty flanging, including closed box sections.



Vertical Plate Bender / Vertical Press Roll
Manufacturer: Hugh Smith Machines (Qualter Hall & Co. Ltd.)
Application: Heavy-duty metal bending, shaping, and pressing especially for shipbuilding, pressure vessels, and large-scale fabrication.

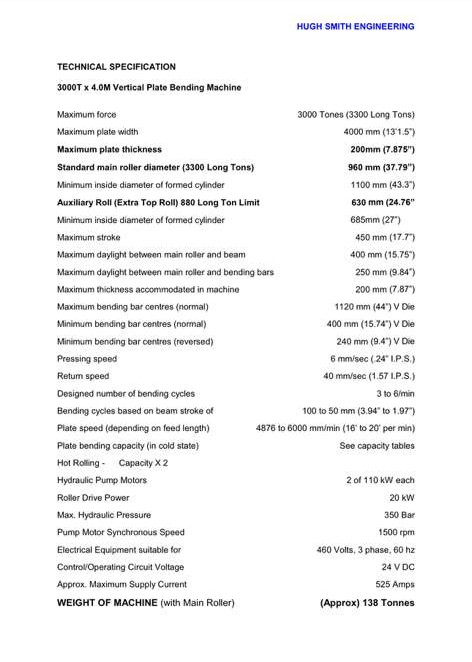

Key Specifications (Typical for 3000-ton class machines)

Pressing Force: Up to 3000 ton
Maximum Plate Width: 4 meters
Maximum Plate Thickness: 7.87″

At full width: ~75½100 mm (depending on material and radius)
At reduced widths: up to 145 mm

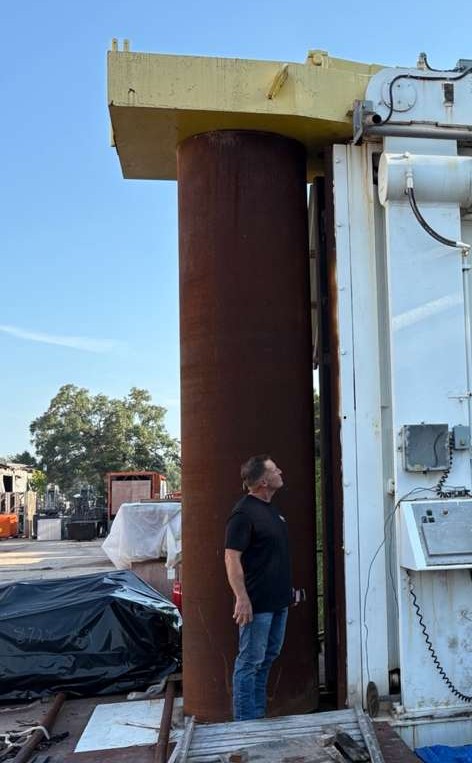

Roll Configuration: Vertical press roll with 3-roll system
Roll Diameter: Typically around 23 inches (varies by model)

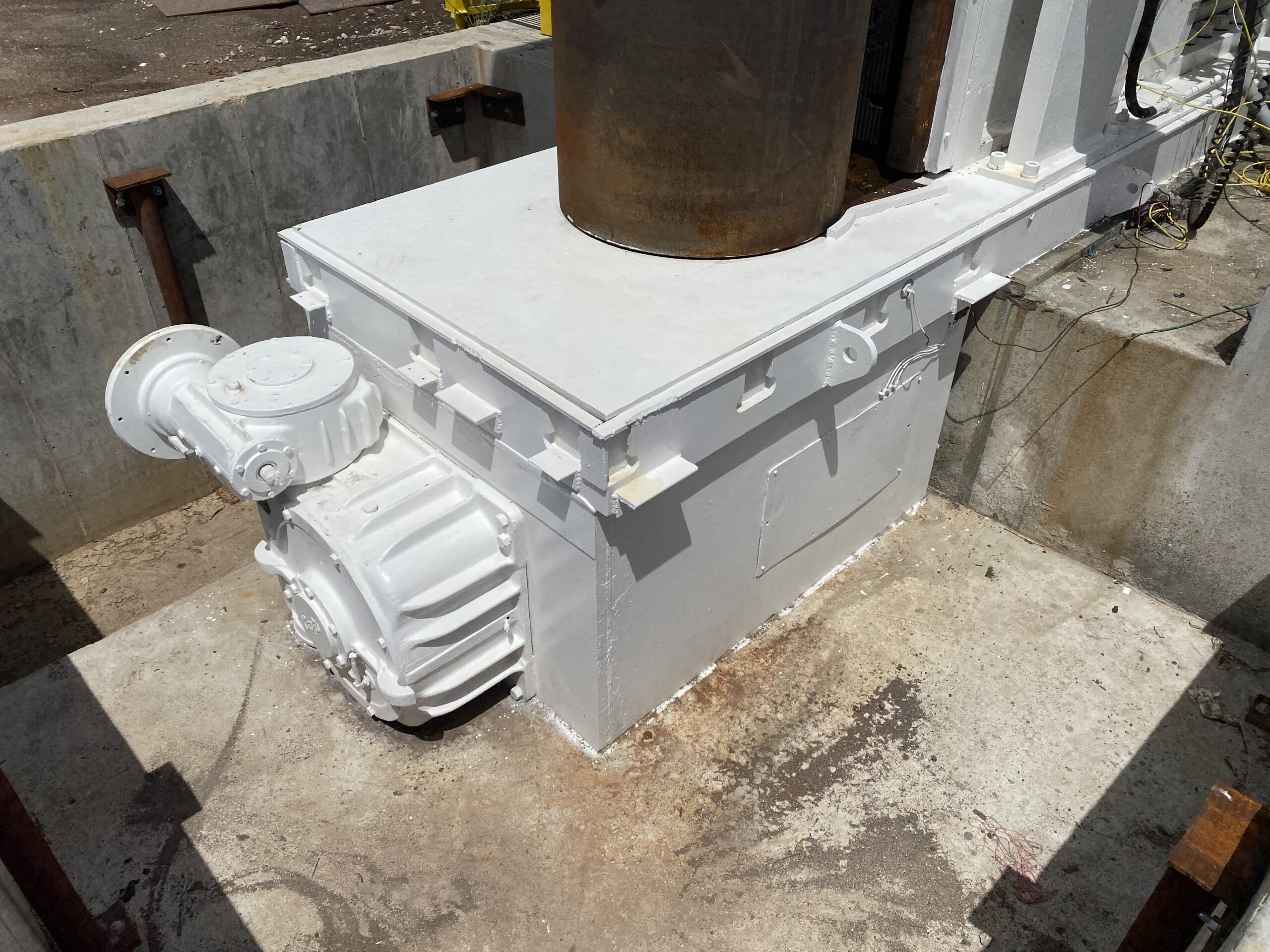

Beam Structure: Heavy-duty top and bottom beams with variable camber gear to offset deflection under load

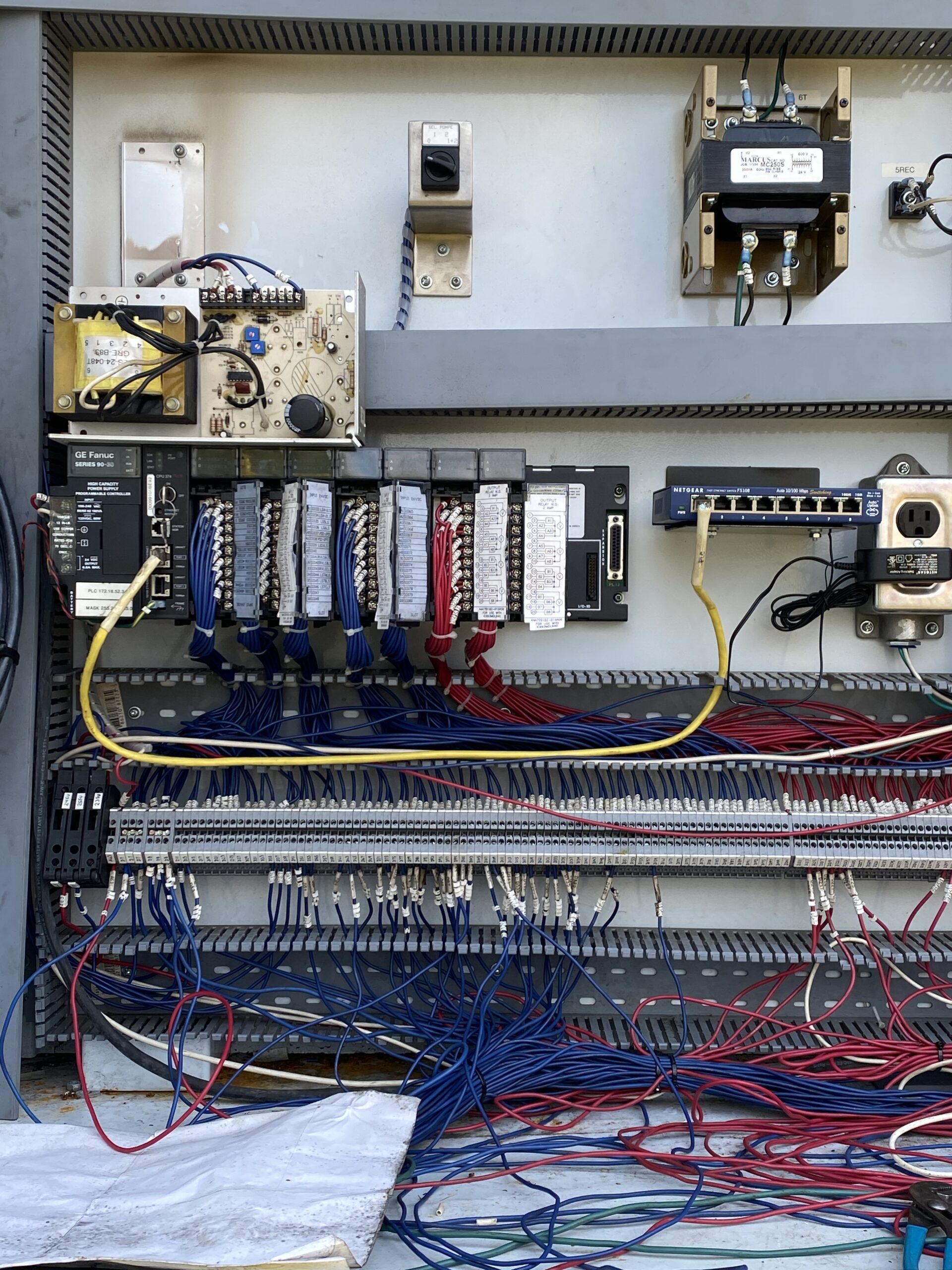

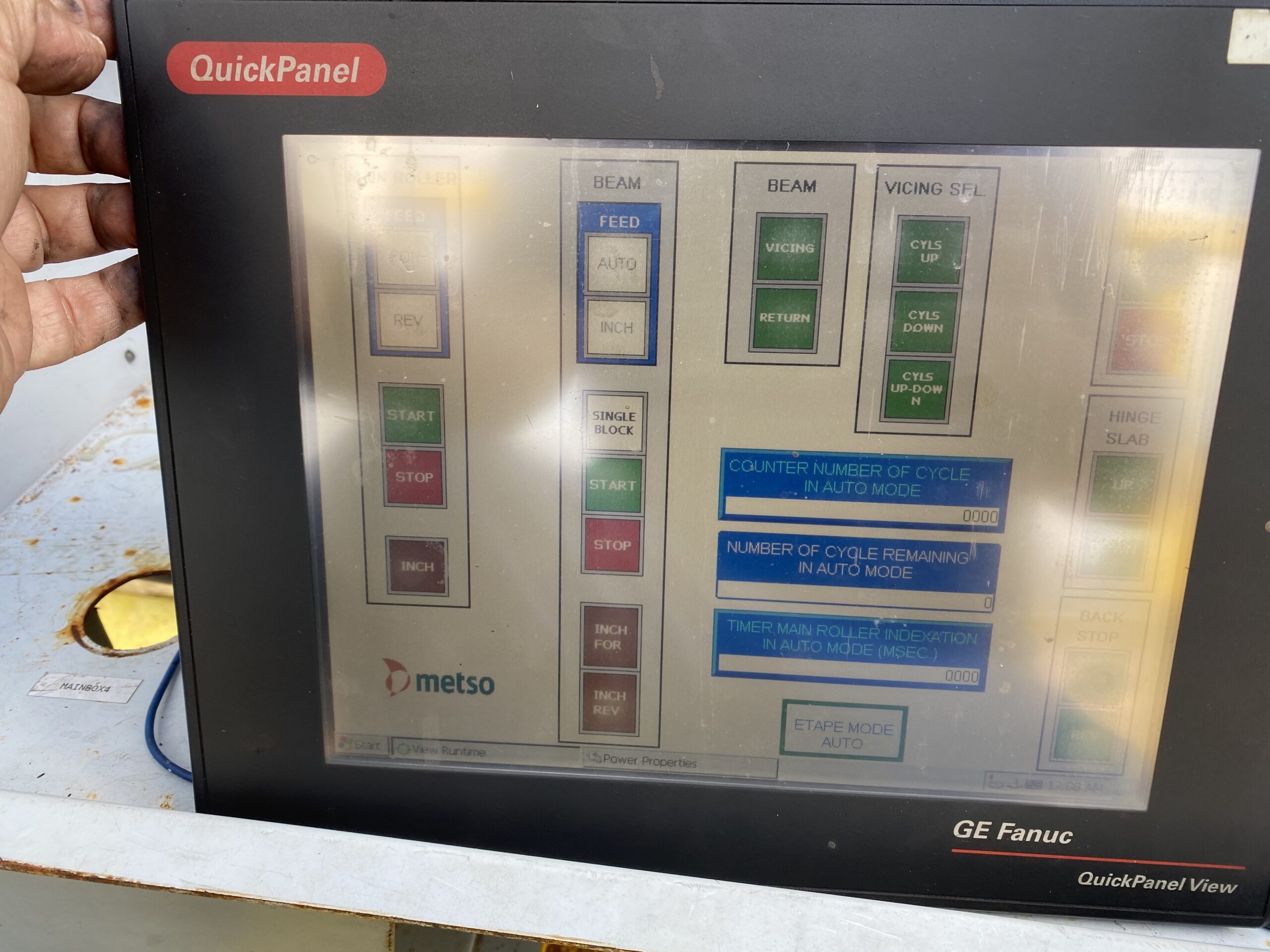

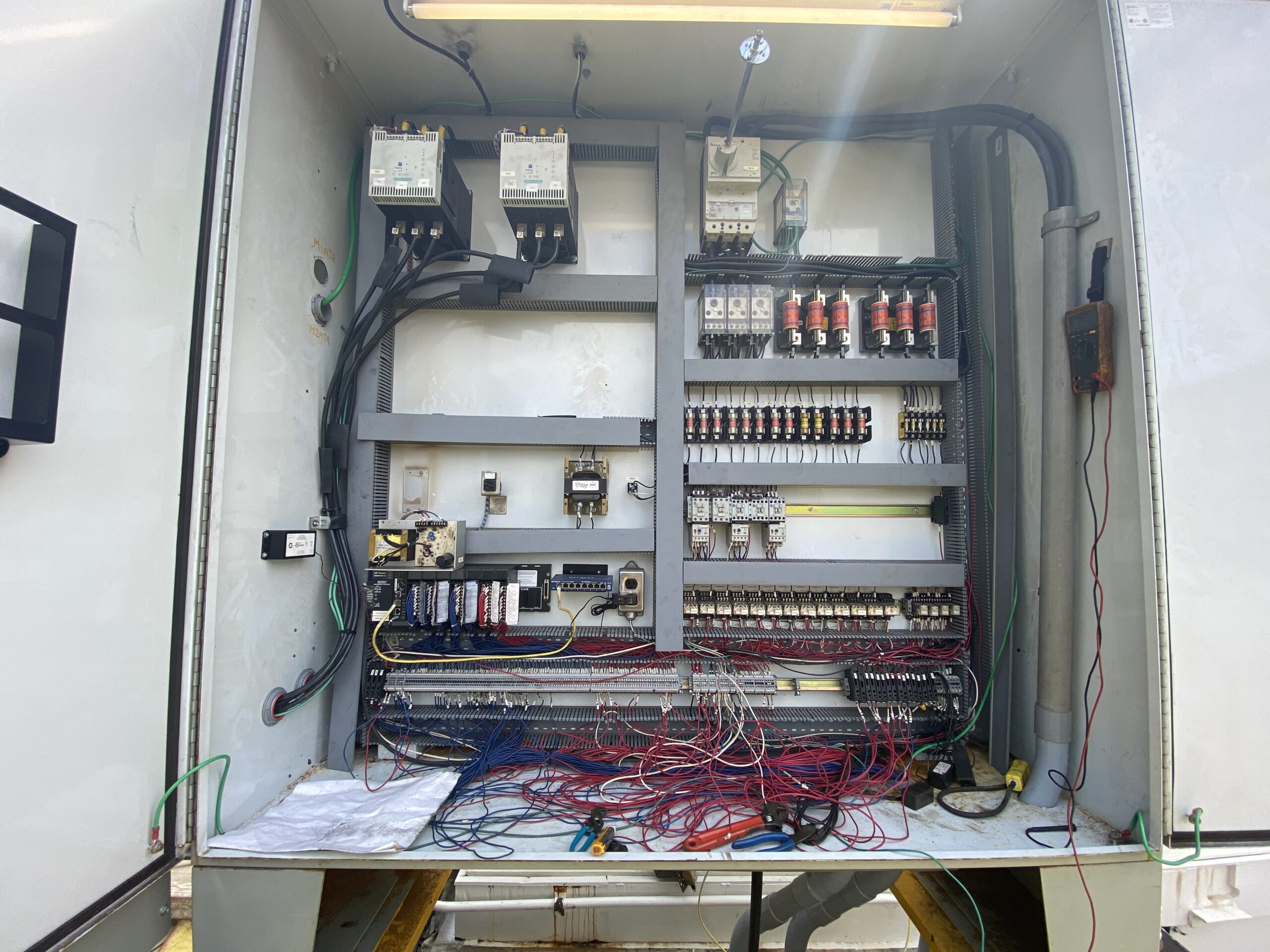

Control System: Electronic indicators for beam and roller positions; hydraulic adjustment for precision
Drive System: Hydraulic with roller bearings for reduced power consumption and extended life

Features:

Independent Roll Arm Adjustment: Allows asymmetric bending and edge curling
Quick Camber Adjustment: Within minutes to compensate for beam deflection
Hydraulic Rams: Typically, 3, for uniform pressure distribution

Ideal for:

Pre-bending steel plate edges
Forming cylindrical and conical shapes
Ship hull and pressure vessel fabrication

Industries Served:

Shipbuilding
Offshore structures
Heavy fabrication
Pressure vessel manufacturing

To learn more about this machine, visit https://qualterhall.co.uk/portfolio/vertical-plate-bender/
