Description

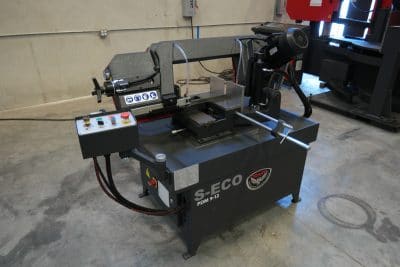

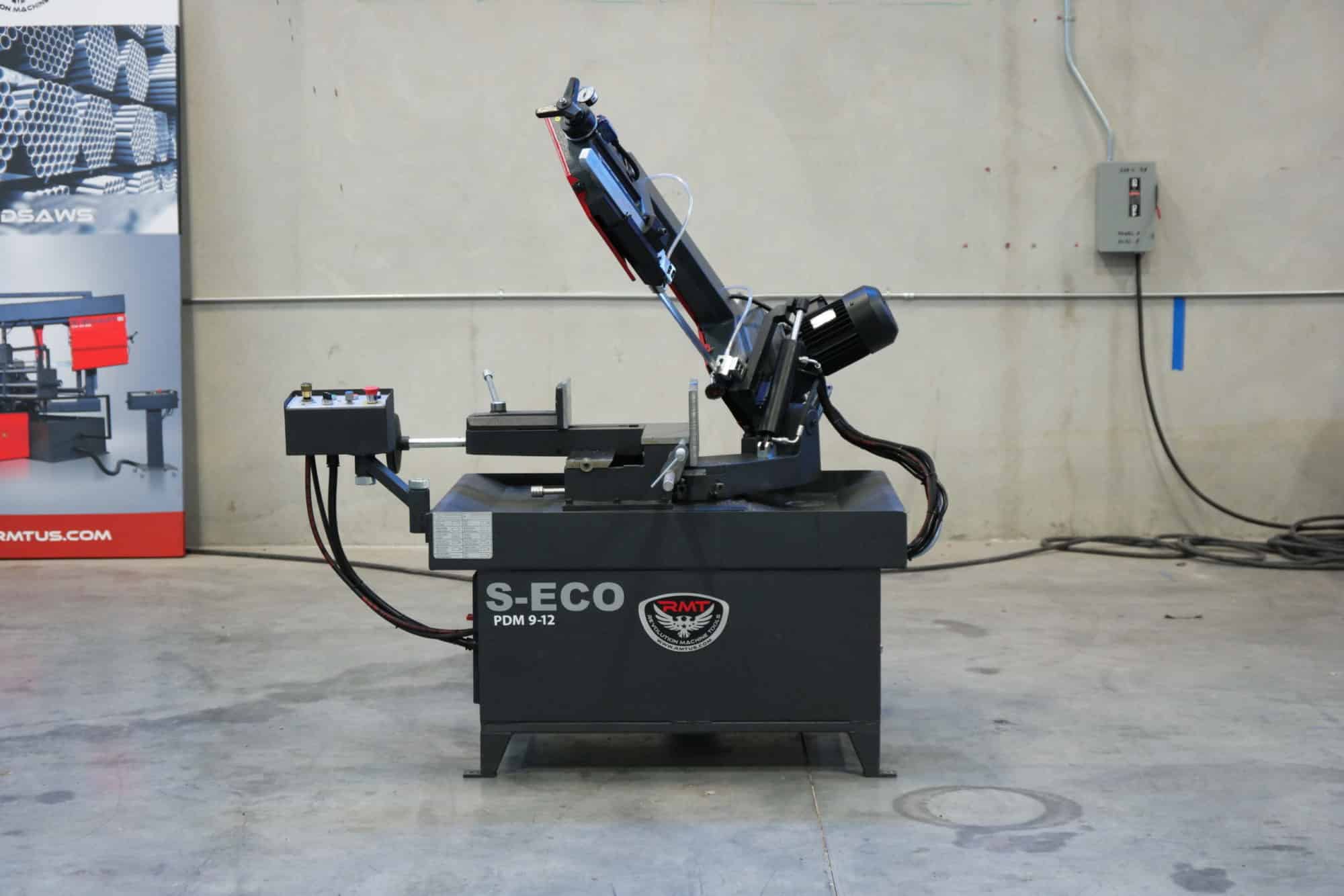

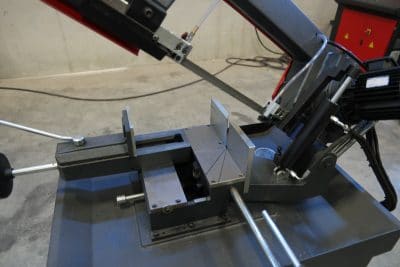

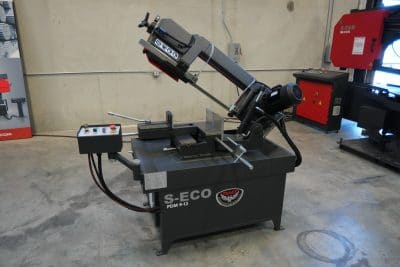

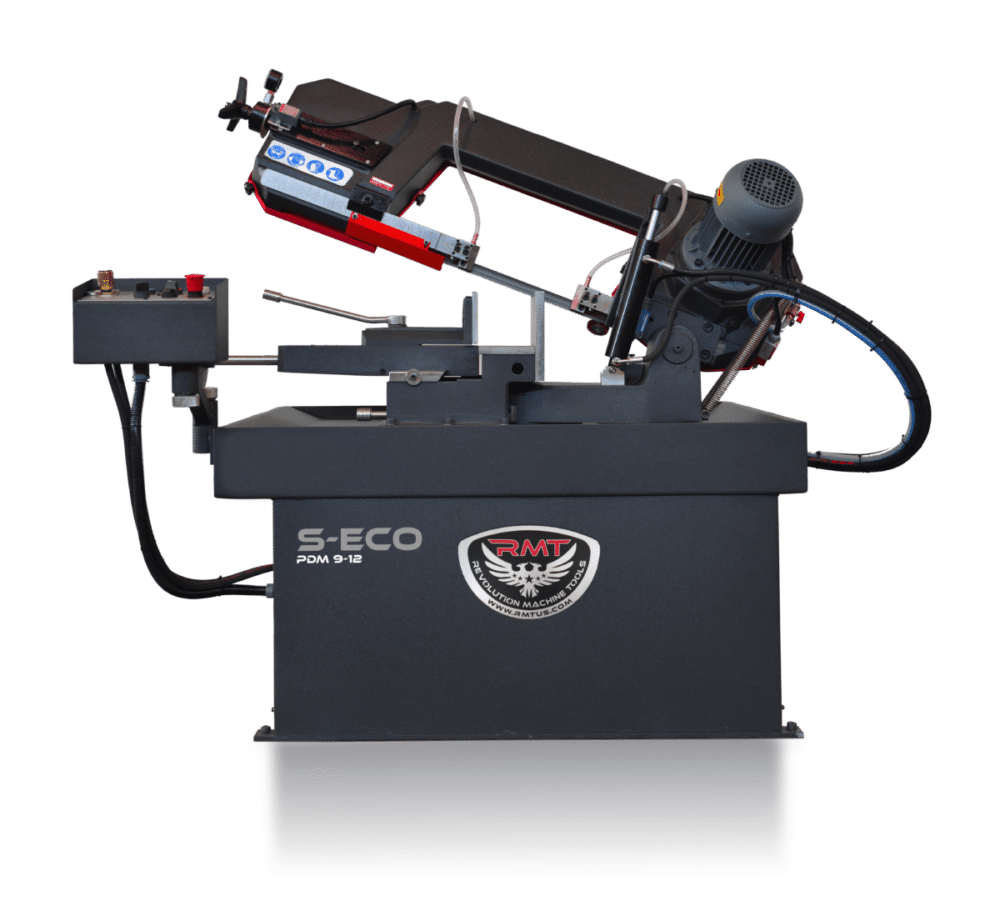

The Revolution Machine Tools™ S-ECO™ PDM 9-12 Manual Pivot Type Double Miter Bandsaws are ideal for cutting material with a variable number of cuts. The cutting capacity of this machine is 9” x 12” in 90° flat cuttings and Ø9” in round material. It is possible to make angled cuts between 45° RIGHT and 60° LEFT degrees. Our machines make the cutting hydraulically and lift manually after cutting. The material is manually driven up to the stop and the cut is repeated.

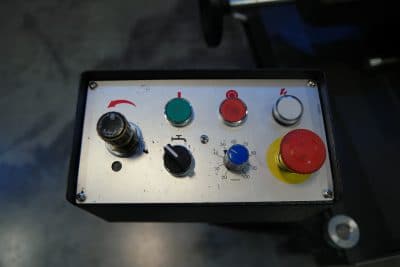

The S-ECO™ PDM 9-12 Bandsaw comes standard equipped with a control panel, blade brush, material length stop, a security switch, hydromechanical blade tension, a coolant pump, infinite variable speed inverter, and single phase – 220 volt 1 phase.

Buyers have the option to add any of these additional features to their S-ECO™ PDM 9-12 Bandsaw as well: DropsA air/oil clean lubrication system, micromist cooling, a stand, a 4ft or 10ft roller table with the option to make the 10ft roller table motorized, and 208V, 230V, 440V, 460V, or 480V 3 phase power.
