Description

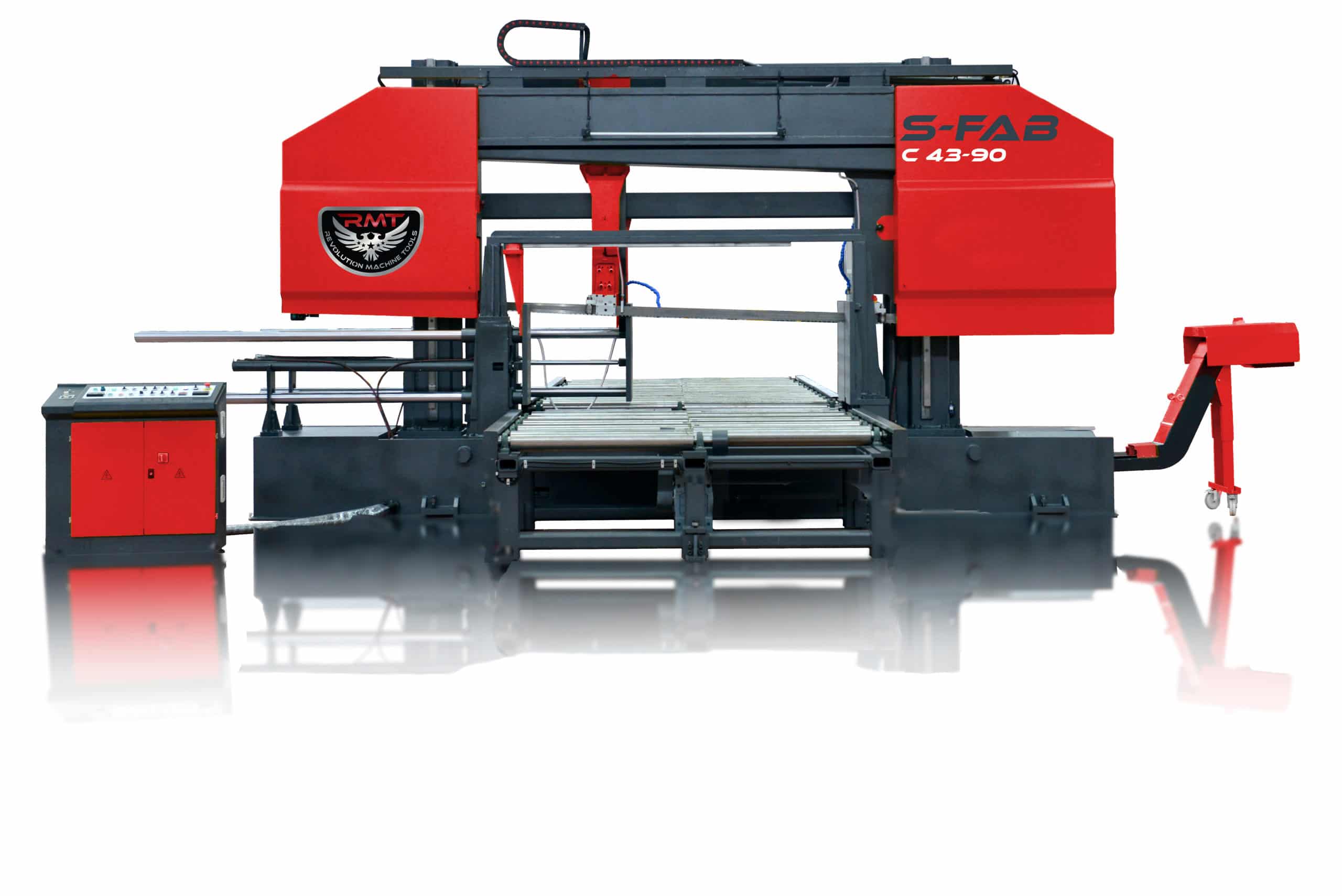

The Revolution Machine Tools™ S-FAB™ C 43-90 Semi-Automatic Column Type Bandsaws are ideal models for material cutting with variable number of cuts. The cutting capacity of this machine is 43” x 90” in 90° flat cuttings and Ø43” in round material. Our machines do the cutting hydraulically. After the cutting is finished, the upper body automatically rises to the cutting height. For the next cut, the material is manually driven up to the stop and the cut is repeated.

The S-FAB™ C 43-90 Bandsaw comes standard equipped with a control panel, blade brush, hydraulic vise, security switch, Siti heavy duty gearbox, infinite variable speed inverter, sensitive pressure control, hydraulic blade tension, optical saw height adjustment, linear guide rails, proximity switch for sensing blade slippage, chip conveyor, coolant pump, 4ft roller table, and 230V or 440V 3 phase power.

Buyers have the option to add any of these additional features to their S-FAB™ C 43-90 Bandsaw as well: Hydraulic blade tension, Dropsa air/oil clean lubrication system, micromist cooling, 10ft roller table with the option to make the table motorized, laser line, inclined blade angle, and miter base.
