Description
Example of an Underfloor Wheel Lathe

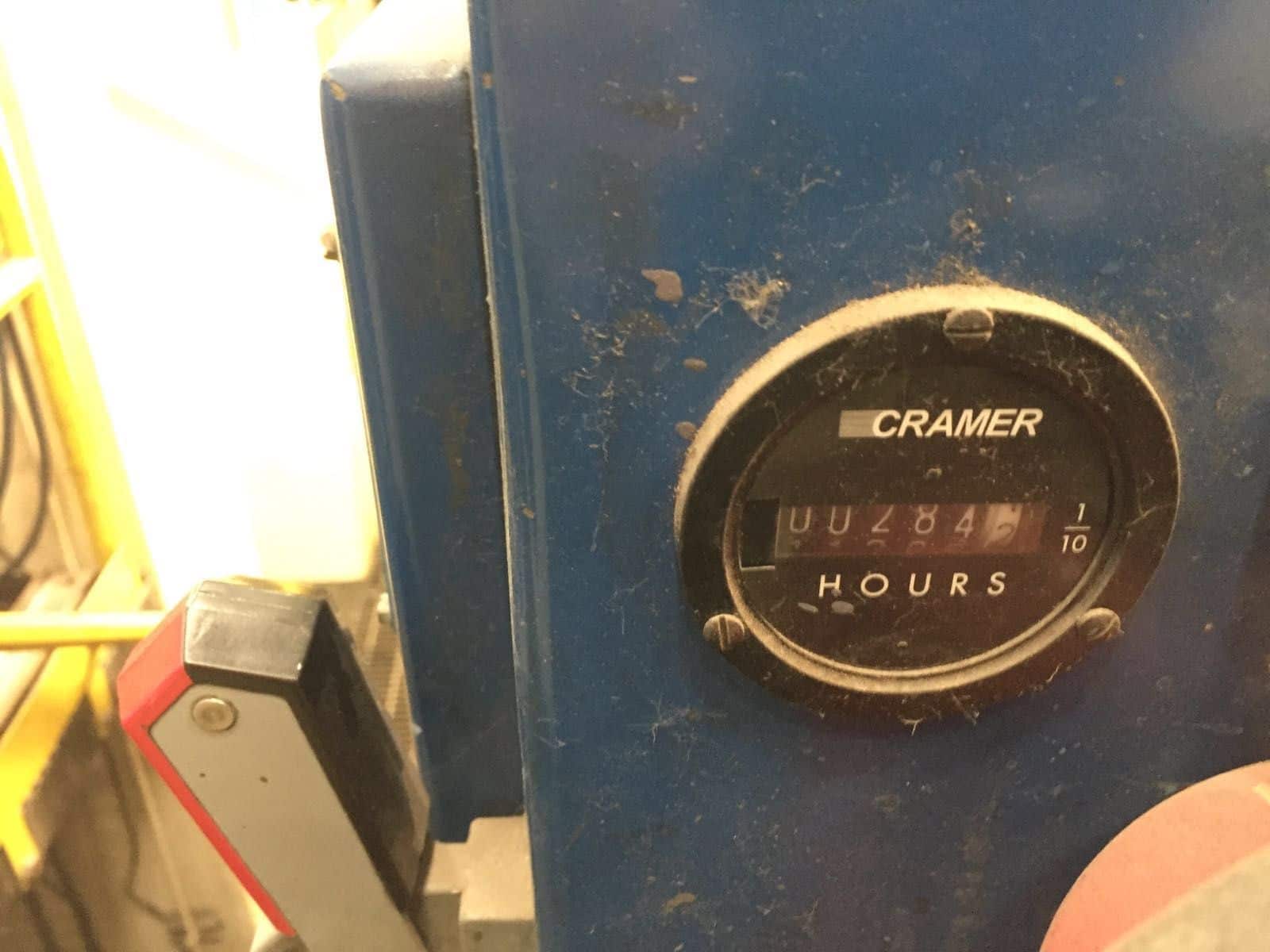

Pre-owned (Only 284 hours since it was installed new) American Underfloor Wheel Truing Machine.
Machine New was over $1,500,000

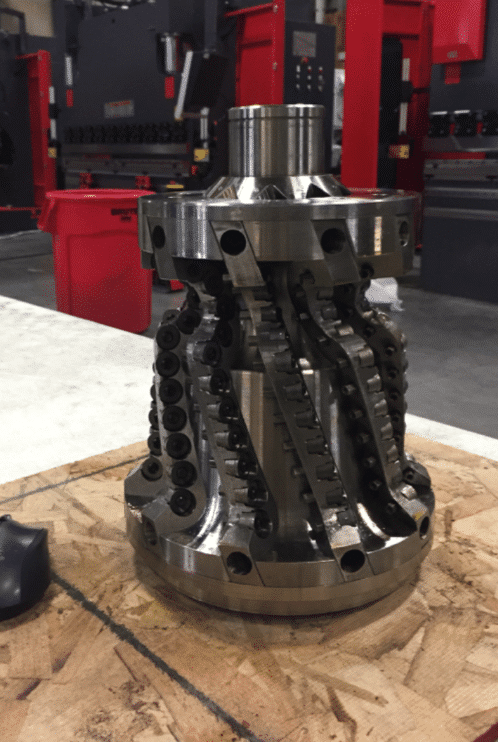

We also have 3 sets of Cutting heads (most have never been used).

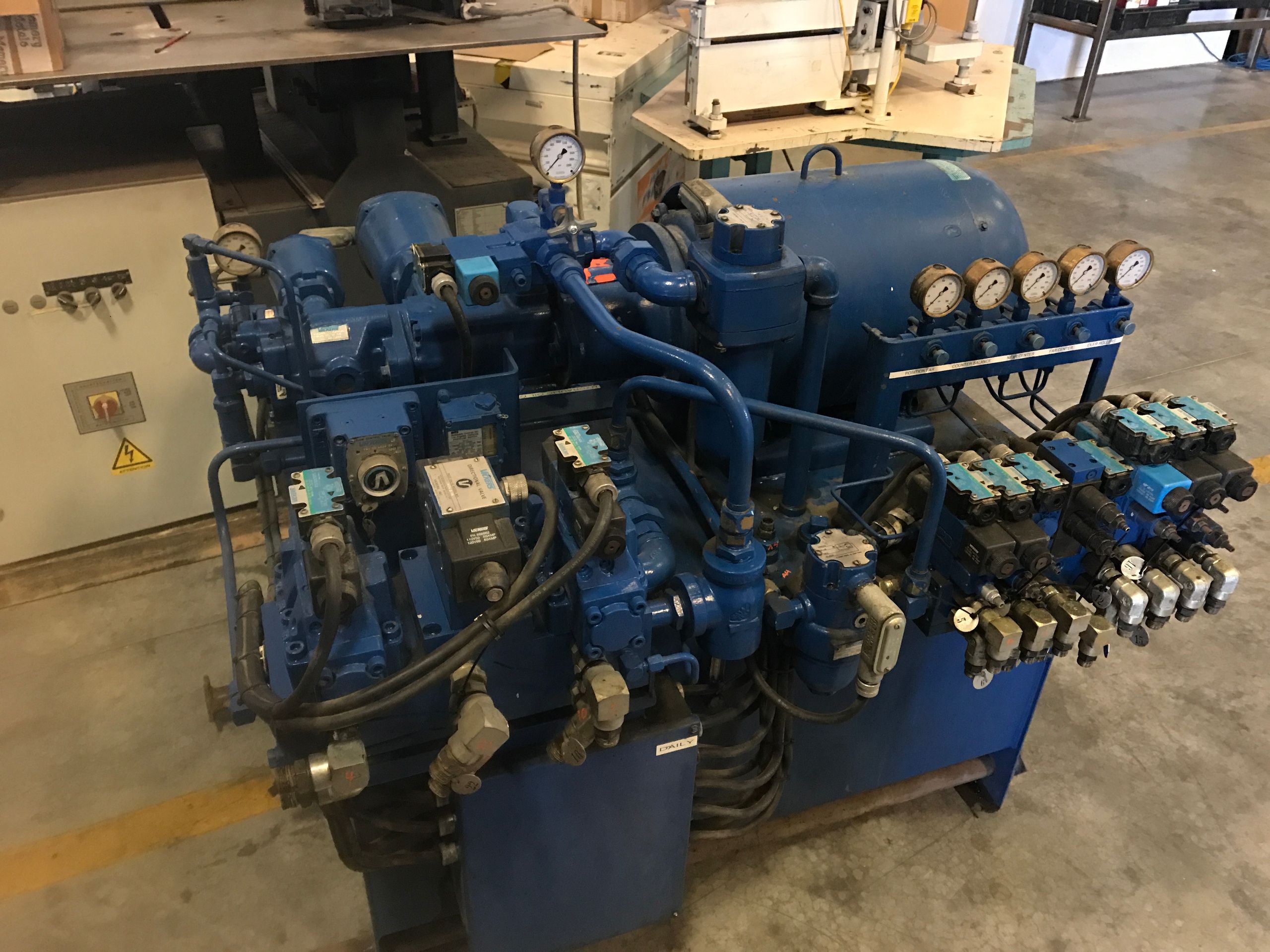

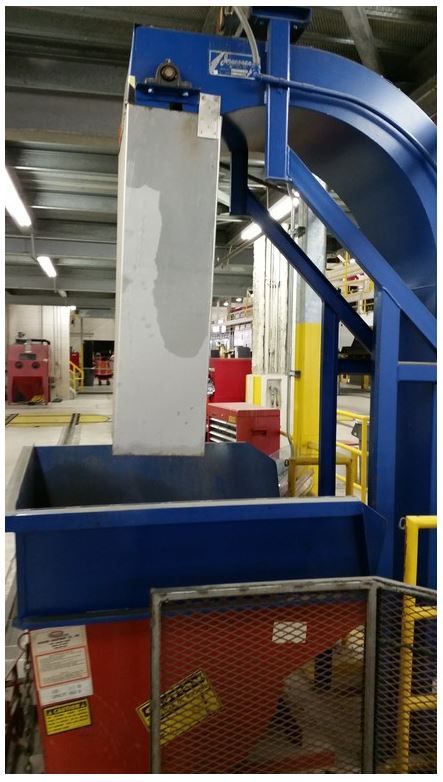

Includes a large pallet of new parts/spares.

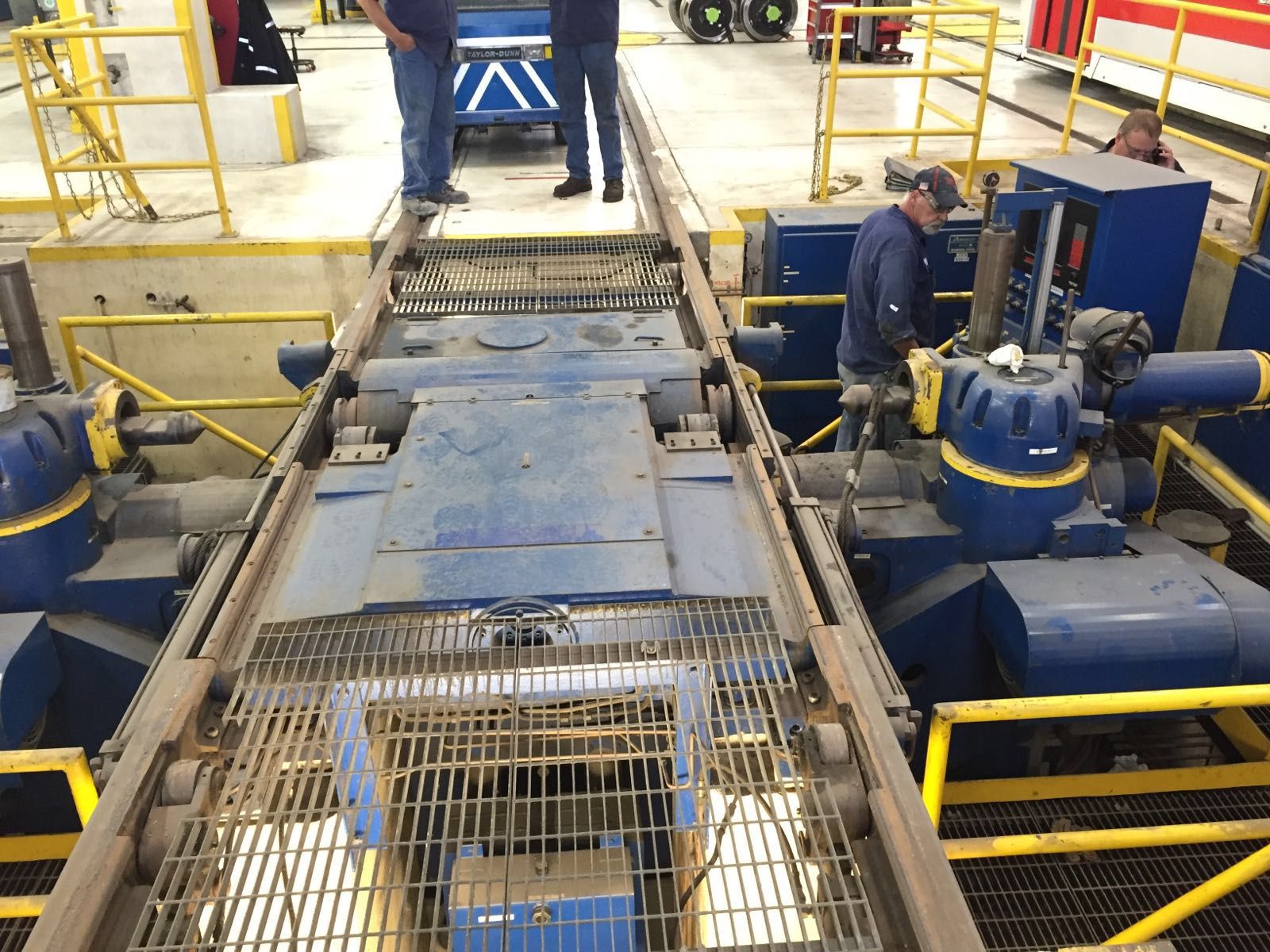

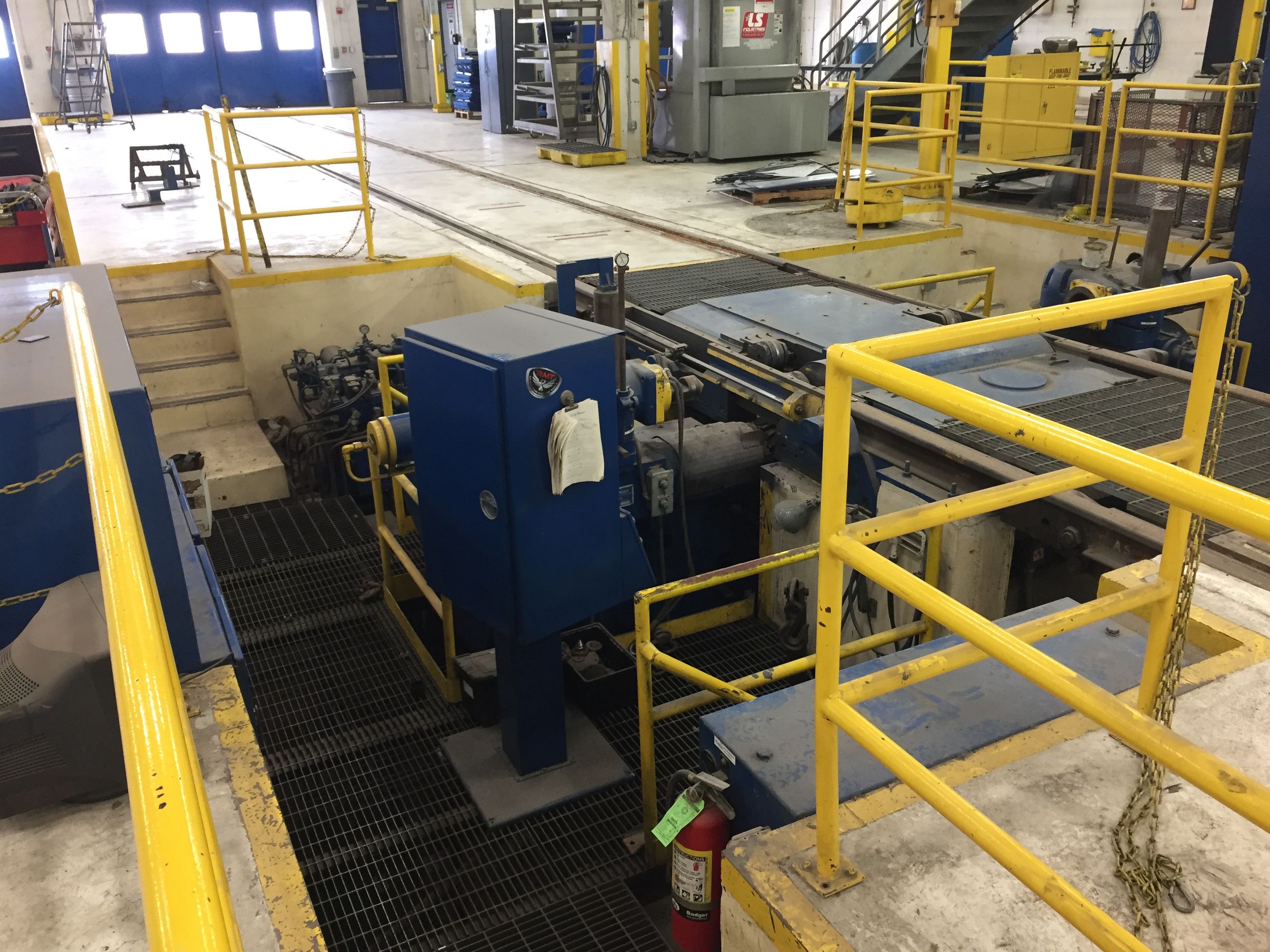

Machine configuration: underfloor pit-mounted dual Spindle milling machine, capable of simultaneously re-profiling both wheels of a railway wheelset using the axle centers as the machining reference point. It is capable of profiling wheelsets to necessary specifications concentrically and plane dimensions in any of the following situations:
1- While the wheelset is under a locomotive, passenger or freight car, transit vehicle, or other rolling stock.
2- While the wheelsets are mounted in a truck.
3- While the wheelset is demounted as a single set.

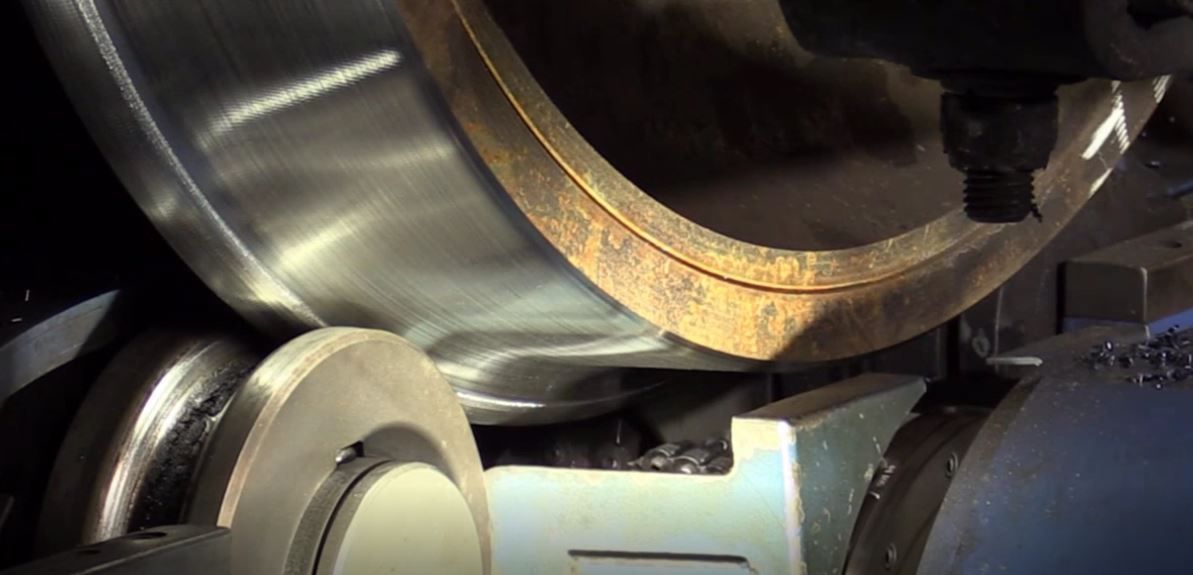

The Machine will re-profile both wheels simultaneously to equal diameters, leaving a witness groove at the flange of the profile. Both wheels of a wheelset will be finished automatically to the diameter that is required to clean up while removing the minimum amount of metal possible. Machine Specifications Fabricated Beam Maximum Length 128 in. C-Frame Maximum Width 245 in. C-Frame Maximum Height 117 in. Total Weight 45000 lbs. Pit Dimensions Length 325 in. 8574 mm Width 315 in. 7947 mm Depth 122 in. 3065 mm
General Specifications:
Production: Up to 10 wheel sets per 8-hour shift Diameter Accuracy +/- 0.020 in. +/- .5 mm Eccentricity +/- 0.020 in. +/- .5 mm Profile Accuracy +/- 0.010 in. +/- .25 mm
Surface Finish: 200 RMS axially,150 RMS on wheel circumference Milling Cutter Speed 30 RPM Hydraulic Centering Ram Force 6500 lbs.
Hydraulic Hold-Down Force 15 tons
Utility Requirements: Electrical Power 76 kW Hydraulic Reservoir 90 US gallons Wheel Set Dimensions Maximum Wheel Diameter 58 in. Minimum Wheel Diameter 23 in. Maximum Axle Load 50 tons Specifications subject to verification
Revolution Machine Tools
Our experienced service & application specialists are the best in the world, standing by to help install, perform on-sight training, maintenance, and repair of your equipment.
