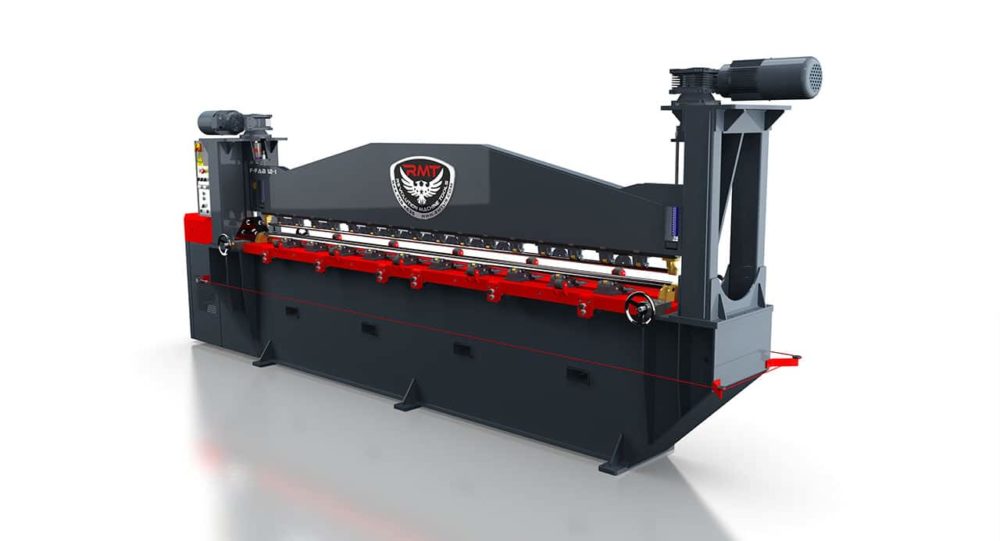

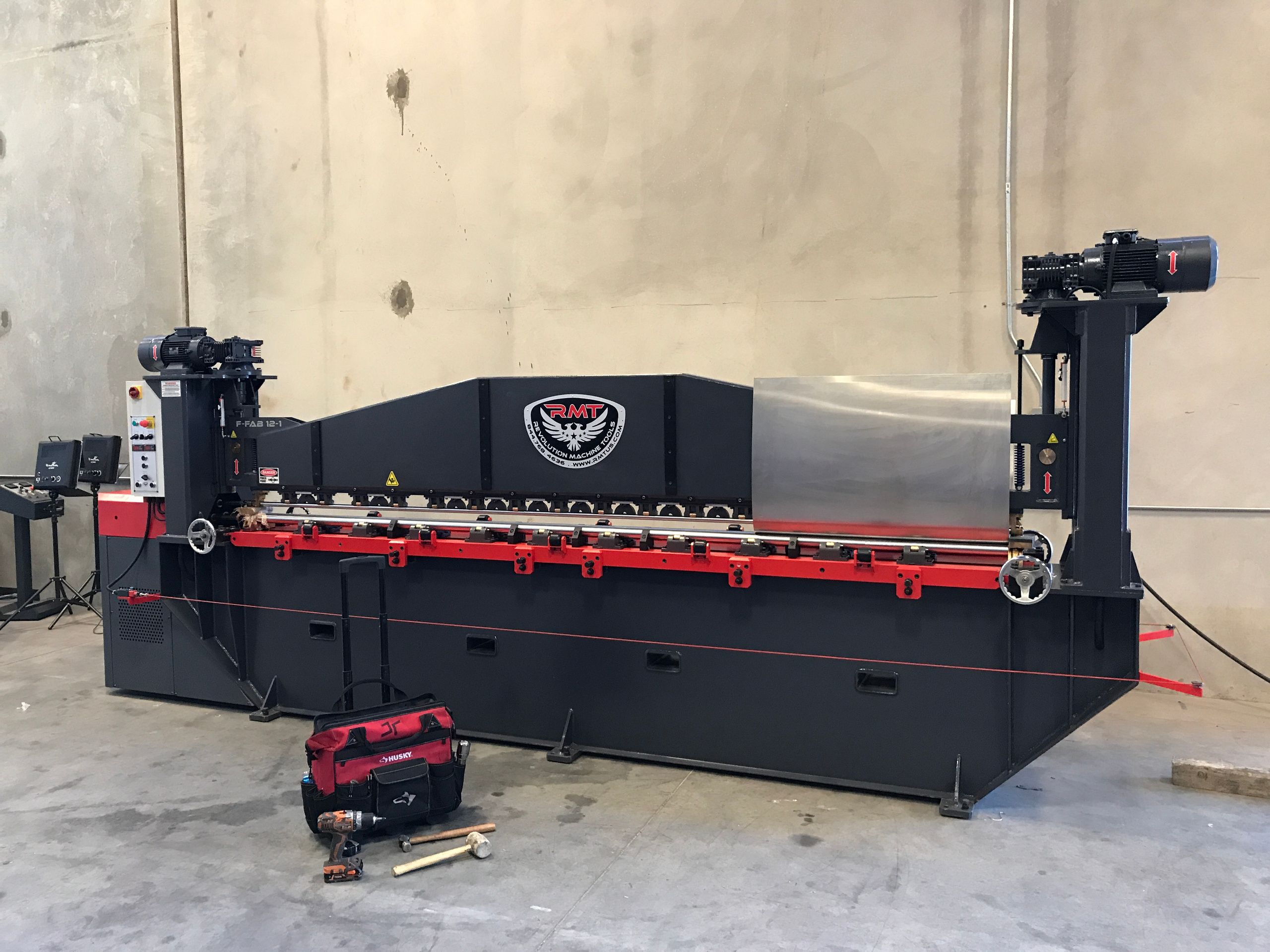

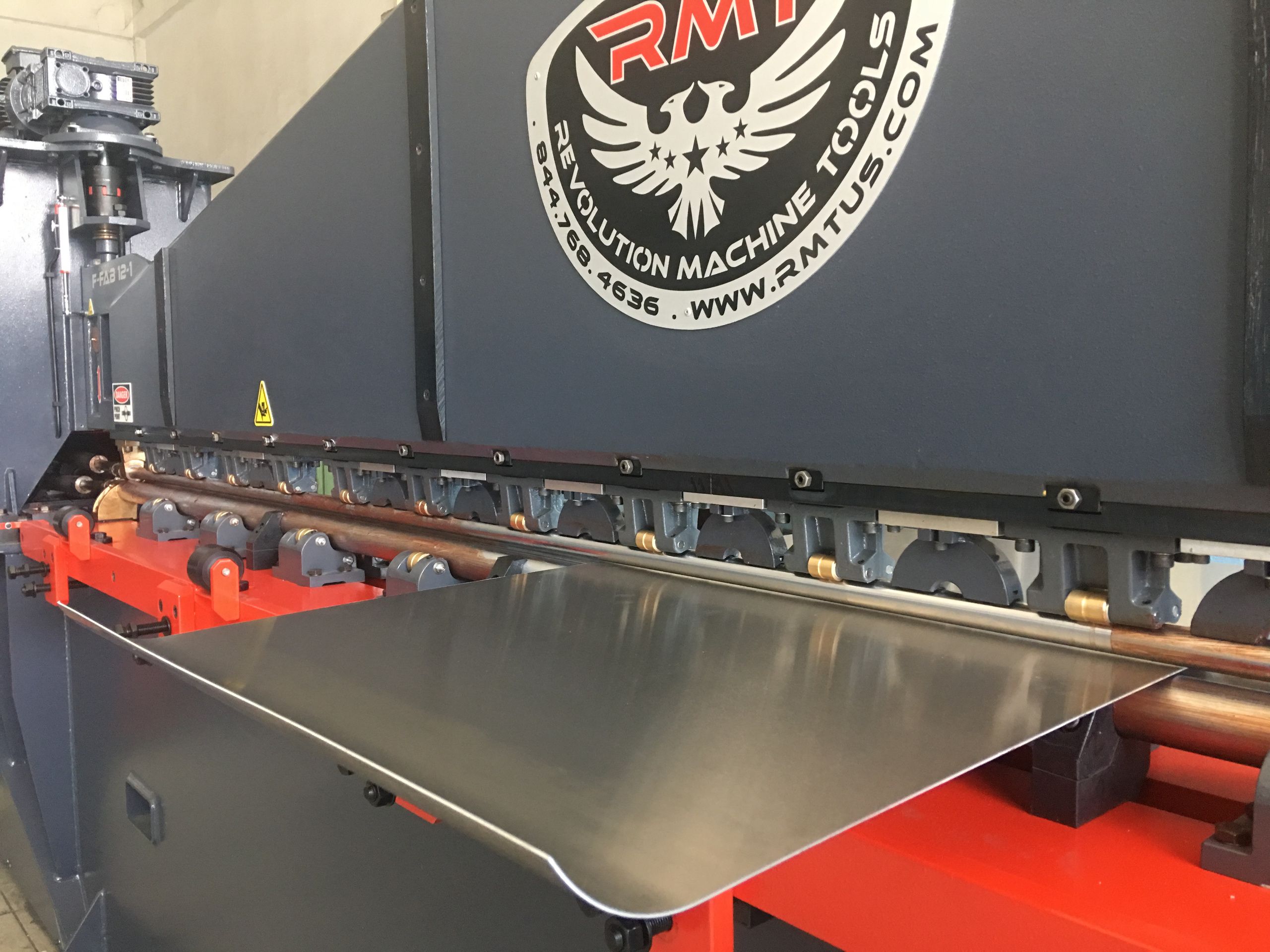

As with all RMT™ designs, these special rolls are designed and engineered here in the USA. Built with quality components and extremely intelligent design, these rolls are built to last decades. No other machines match the speed, simplicity and precision for the aviation industry as the RMT™ F-Series™ machines. These machines bend aluminum or titanium alloyed sheets even with one or more radius, including hyperbolic shapes, to get precise cylindrical or tapered forms. The RMT™ R&D teams experience and expertise can even help create custom machines to solve any problem specific to your project.
RED MACHINE GIVES YOU WIIIIIINGS!
There was a time when several companies fought over the aircraft and aerospace industry in forming leading edge’s, helicopter propellers, and other special projects. Almost all of those companies are gone now and their used machines are very difficult to find. RMT™ F-Series™ Rolls have filled the need and brought back with even more unique features the machine that makes these difficult parts, simple again.
PRECISE AND POWERFUL

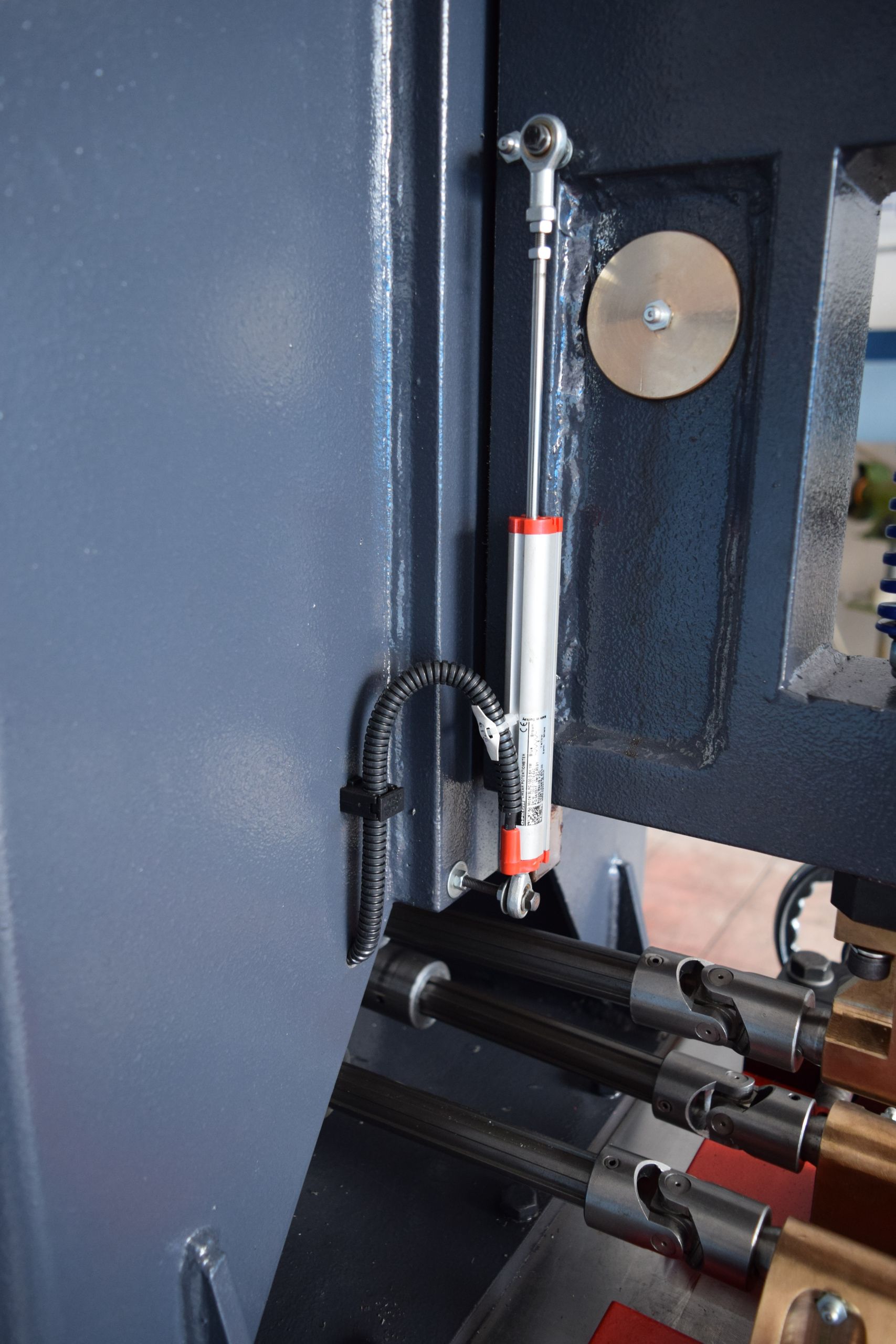

The movement of the upper beam is powered by separate dual speed AC motors, gearboxes, screw jacks and zero backlash couplings. Upper beam positions are monitored by very sensitive linear encoders and digital readouts. Top and bottom rolls are driven by a high torque dual speed AC motor and gear set. Gearbox rotation transferred to the rolls by sensitive cardan joints. The strong magnetic disk brakes prevent the sheet from sliding back during pre-bending operation.
INTENSE SPRINGBACK
If you have ever tried to form relatively thin titanium, then you know exactly how flexible and elastic it is. Overcoming the ultra high yield point to allow the material to take on the new shape you need requires not only special knowledge, but special machinery that takes into consideration the challenges that such materials bring to the table. RMT™ Rolls are all designed to perform with a wide range of materials to suit each customer’s need.
PETITE TOP ROLL, MASSIVE RESULTS

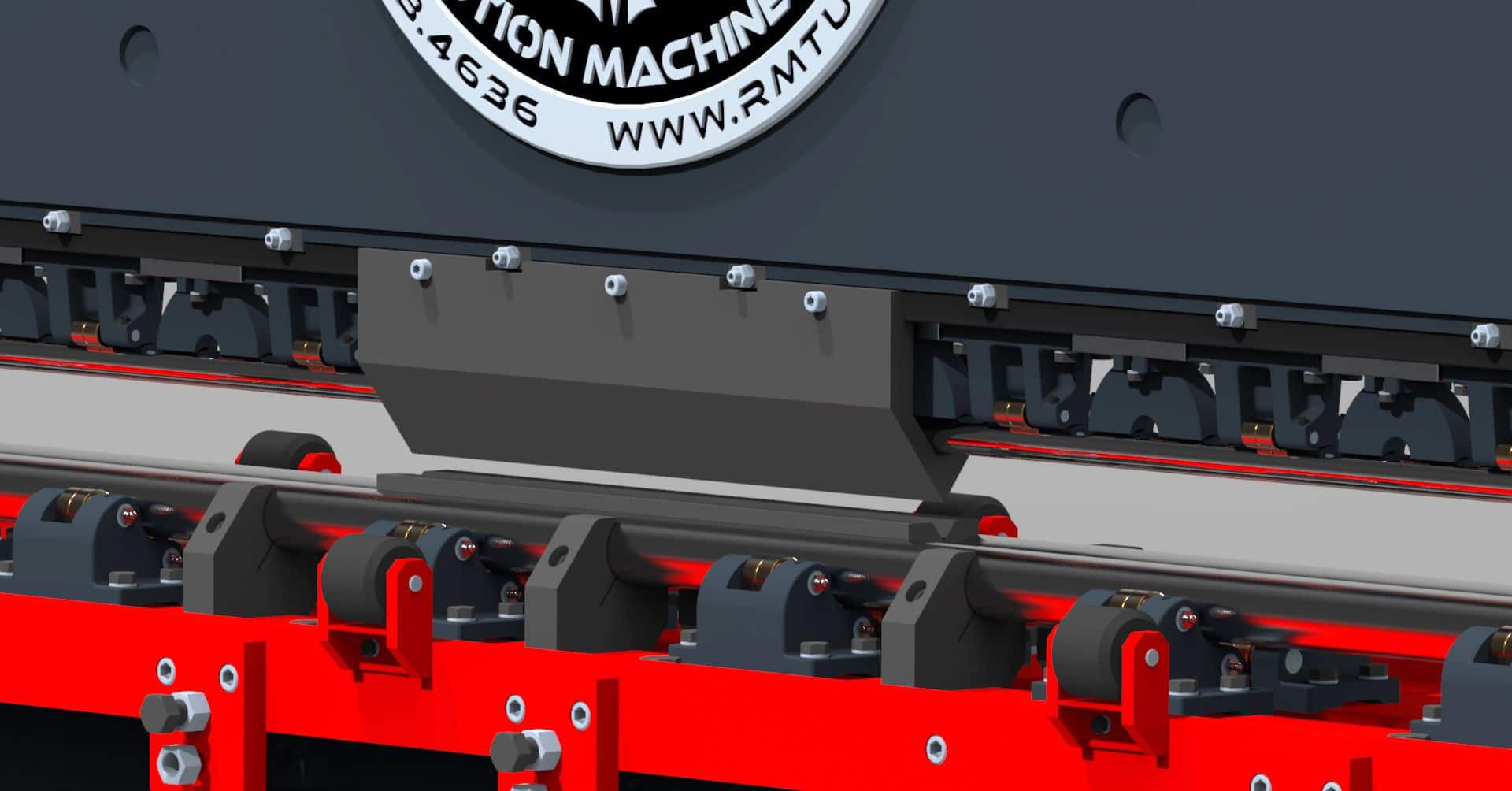

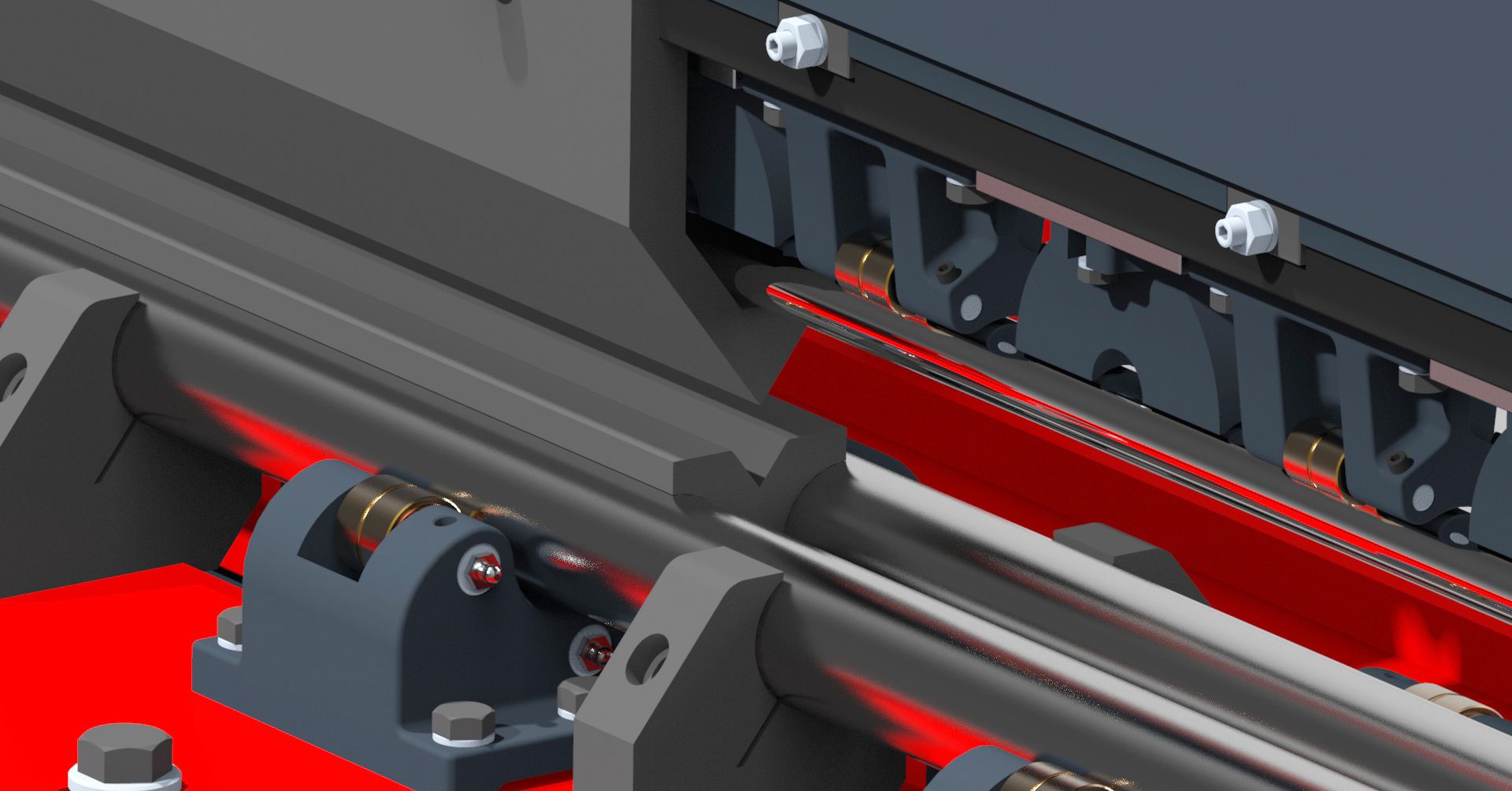

To create a truly perfect leading edge you must have a machine that can roll such a tight diameter it can overcome the ultra high yield point of material like Titanium. Of course, to roll a tight diameter you must have a small upper roll. The only way to compensate for the inevitable deflection of using a small upper roll is to fully support the rolls the full length of the machine.
Testimonial for the B-GENIUS Revolution Machine Tools Press Brake Finn Kool - Kansas
We take pride in every machine we sell. It makes us extremely happy when our customers do also 🙂
These Press Brakes feature a servo driven back-gauge system for faster speeds and better accuracy. The automatic CNC crowning system improves part quality. A 3D-capable Graphical Control Unit simulates bending sequences and detects collision points before you begin the bend. B-GENIUS Press Brakes have exceptionally large strokes, huge daylight, and throat depths to accommodate deep bending and long tooling.
Another satisfied customer! We just delivered an RMT B-Genius 12-150 to Cypress Metals (Utah) who has been using press brakes for nearly two decades. They exclaimed at the ease of use, the precision, the versatility and the speed of the machine.
The main operator told us that this machine is, “hands down, the best machine I have ever used!” We are proud of our machines and how we are helping our customers grow their businesses!
These Press Brakes feature a servo driven back-gauge system for faster speeds and better accuracy. The automatic CNC crowning system improves part quality. A 3D-capable Graphical Control Unit simulates bending sequences and detects collision points before you begin the bend. B-GENIUS Press Brakes have exceptionally large strokes, huge daylight, and throat depths to accommodate deep bending and long tooling.
These small initial pinch rolls are designed for small part bending with low operation cost. R-ECO rolls feature robust cast iron frames, chain and gear driven drive systems and electric motors with a magnetic break which eliminates drifting. They also offer foot pedals with forward, reverse, and E-stop along with a safety wire and limit switch. A very economical, reliable, and efficient choice for your small parts needs.
Fiber Nation a valued customer of ours gives us a testimonial on a Fiber Laser they bought from RMT years ago.
Presented by Kyle Jorgenson & Fiber Nation Executives (Anthony Evans & Dave Arbon)
Equipped with State-of-the-art technology, Fiber Lasers have become the leader in most CNC cutting applications. RMT Fiber Lasers feature unmatched cutting and travel speeds, all the while holding tolerances up to a thousandth of an inch.
For more information check out the RMT Fiber Lasers at https://rmtus.com/rmt-fiber-lasers.php
These small initial pinch rolls are designed for small part bending with low operation cost. R-ECO rolls feature robust cast iron frames, chain and gear driven drive systems and electric motors with a magnetic break which eliminates drifting. They also offer foot pedals with forward, reverse, and E-stop along with a safety wire and limit switch. A very economical, reliable, and efficient choice for your small parts needs.Learn more at https://rmtus.com/plate-rolls/
RMT R-SMART 10-866 Hydraulic 4 Rolls Plate Roll Machine - Testimonial by Absolute Metals
Scholzen a valued customer of RMT, gives a brief testimonial on the S-Fab Bandsaw they purchased to make their lives easier.Scholzen Products Co. HURRICANE, UT
People love these KYSON Fiber Laser machines! Don't believe us? Just take a moment and watch this testimonial 🙂 Presented By: Jared (KYSON Operator)
The RMT KYSON Series Fiber Laser is our latest design with a plethora of technological enhancements. The KYSON Fiber Laser’s speed, precision, reliability, and low operating cost is legendary and second to none.
Pro Fab and Welding of Pleasant Grove, UT became the latest recipient of one of our new metal cutting band saw models. Fully automatic and loaded with features this saw makes short work of large bundles, even allowing up to a 60-degree miter. Joe, the operator for Pro Fab and Welding has been working with saws for 25 years and told us that, "This saw kicks butt" and "runs better than any saw I've ever had." He also made several comments about really wishing he had a couple of them, to which we just smiled.
RMT S-Smart Bandsaw - Pro Fab & Welding Testimonial
SME Steel in South Jordan, Utah is a proud owner of an RMT Press Brake and Shear. RMT was able to train the SME workforce to operate the machinery, thus saving money and expanding the skills set of its workers. www.RMTUS.com
TeraFlex talks about their RMT B-Genius 10-150 Press Brake. This brake is designed and commissioned by Revolution Machine Tools and its dedicated Research and Development Team.www.RMTUS.com
"Support on it has been unreal" This is exactly what RMT like to hear! It's our goal and part of our mission to provide unparalleled support to each and every customer.
Plus Fiber Laser technology blows everybody's socks off. So check out our KYSON lineup at www.rmtus.com/rmt-fiber-lasers.php
Hammerton a valued customer of ours gives us a testimonial on a KYSON 510 3 kW Fiber Laser they bought from RMT.
Presented by Greg Paulson - Production Manager
Equipped with State-of-the-art technology, Fiber Lasers have become the leader in most CNC cutting applications. RMT Fiber Lasers feature unmatched cutting and travel speeds, all the while holding tolerances up to a thousandth of an inch.
For more information check out the RMT Fiber Lasers at https://rmtus.com/rmt-fiber-lasers.php
Here we have yet another great customer giving us great reviews! It also helps we give great prices for our machines. We're just great! But you can be too! 🙂
They’re ideal for rolling wing edges, fuselage panels, tapered skins, cones, and other curved aerospace parts with changing geometry. The design allows true contouring, not just uniform bends.
What makes RMT’s aircraft rolls different from traditional plate rolls?
RMT’s F-Series aircraft rolls use variable geometry, independent roll adjustment, induction-hardened rolls, dual-speed motors, and precision digital read-outs. The build-quality is high end (stress relieved steel frame, ground & chrome coated rolls) and tailored for aerospace work such as titanium and aluminium leading-edges.
What applications are these machines ideal for?
They are ideal for rolling wing leading edges, fuselage panels, tapered skin panels, cones, and other curved aerospace components where sheet geometry changes across the piece. The machine’s design allows contouring rather than just uniform bending.
What materials and thicknesses can RMT aircraft rolls handle?
RMT’s machines are built to handle aluminium, mild steel, and even titanium alloys with high yield strength. For example the F-FAB series handles aluminium or titanium alloyed sheets with one or more radius, including hyperbolic shapes
What length and capacity options are available?
The machines come in a bending length range from about 6′ up to 34′ (depending on model) for wing / fuselage panels.
What safety and quality features are built in?
Features include induction-hardened & chrome-coated rolls, precise digital position feedback, magnetic disc brakes on gearboxes to prevent material slip, mechanical and electrical overload protection, an emergency stop cable running around the machine
How does RMT support maintenance and service?
RMT provides a service network, preventative maintenance programs, parts & tooling support and technical assistance to keep machines operating at peak performance.
What should I consider when selecting an aircraft roll machine?
Key considerations include: the maximum length of panel you need to roll, the material type (aluminium, titanium etc), the maximum thickness, the required geometry (constant radius vs tapered vs complex), the level of automation (manual vs NC), floor space and installation requirements, and long-term support.
How does the geometry control help with spring-back and high-yield materials?
By using an ultra-small top roll (for tight diameter) and by fully supporting all rolls, the machine can compensate for spring-back from high-yield materials. That means even difficult materials like thin titanium sheet can be formed accurately.
How quick/easy is the setup and change-over?
RMT’s machines are designed for ease of use: motorized rolls, digital read-outs for setup, optional NC controls, and integrated design reduce time needed to set up and adjust for a new panel shape. Once parameters are entered, repeatability is high.
