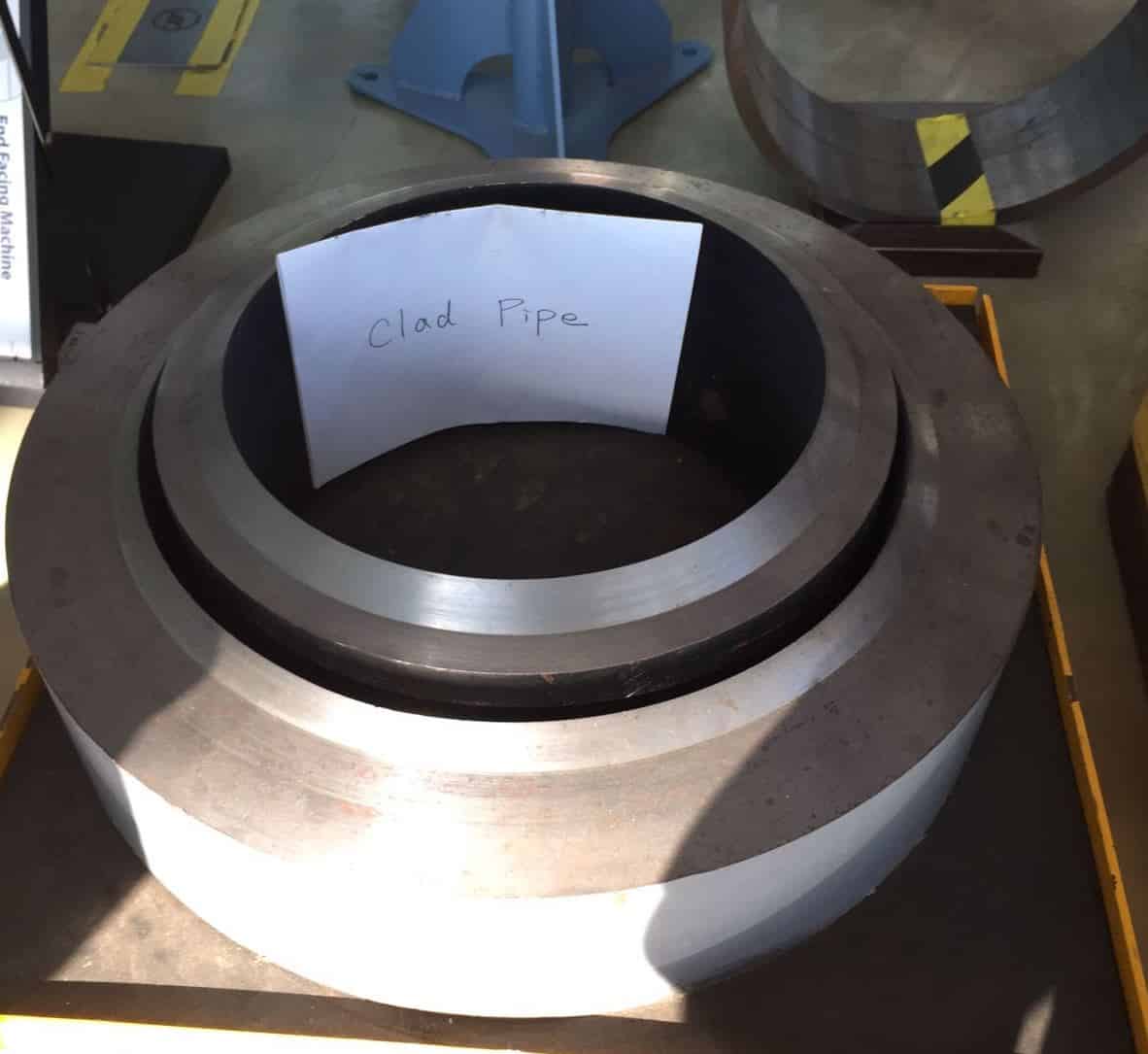

  • clad pipe

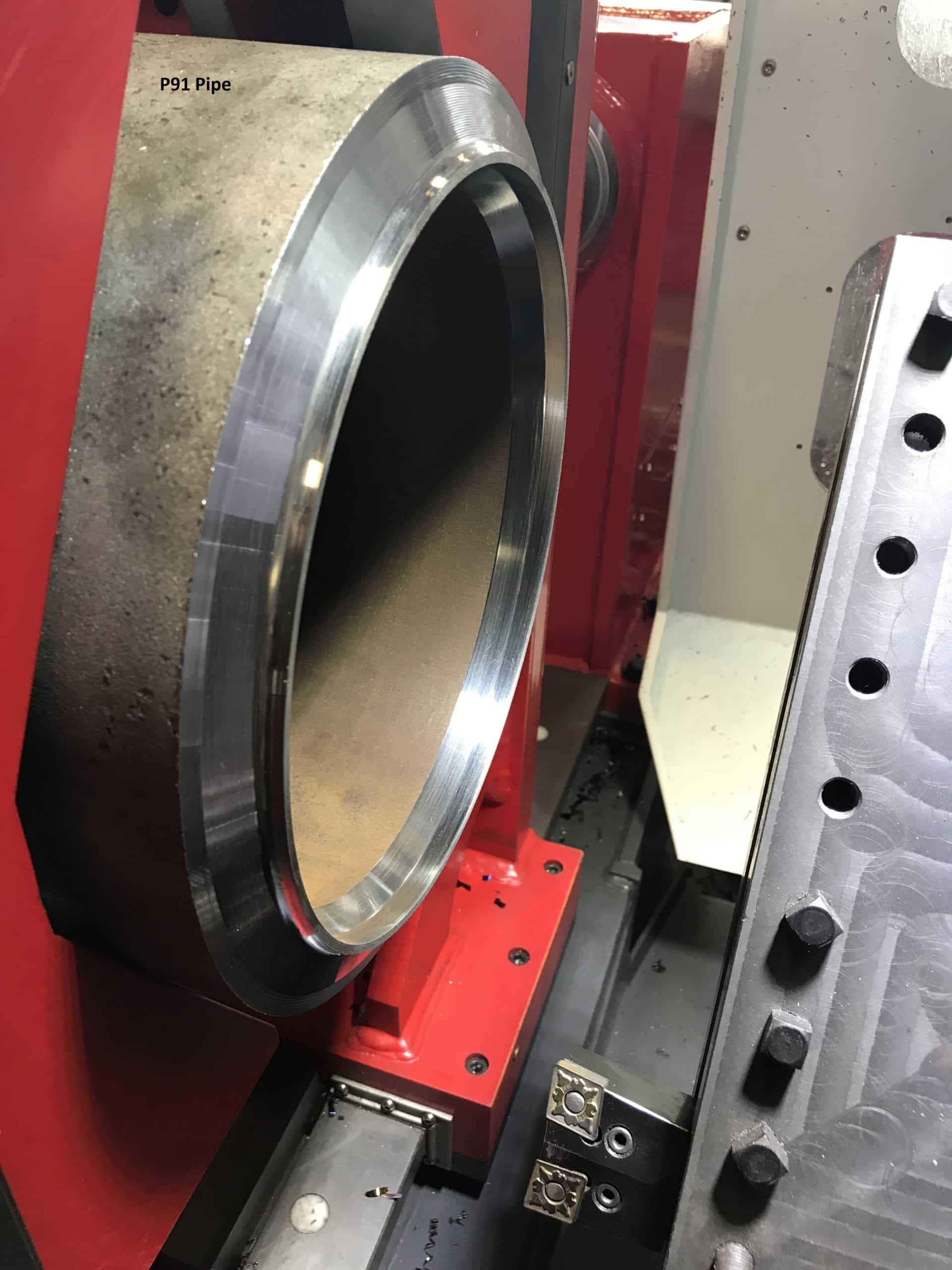

  • 2018 06 12 08.30.41 scaled
  • SAM 5578 scaled

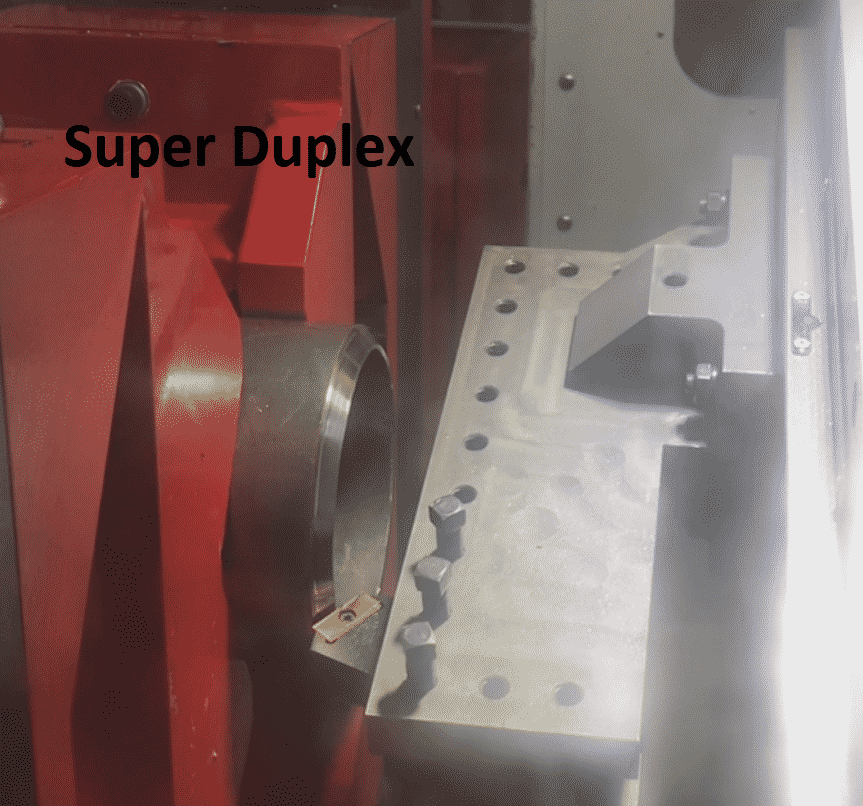

  • Hard Tooling 37.5 super

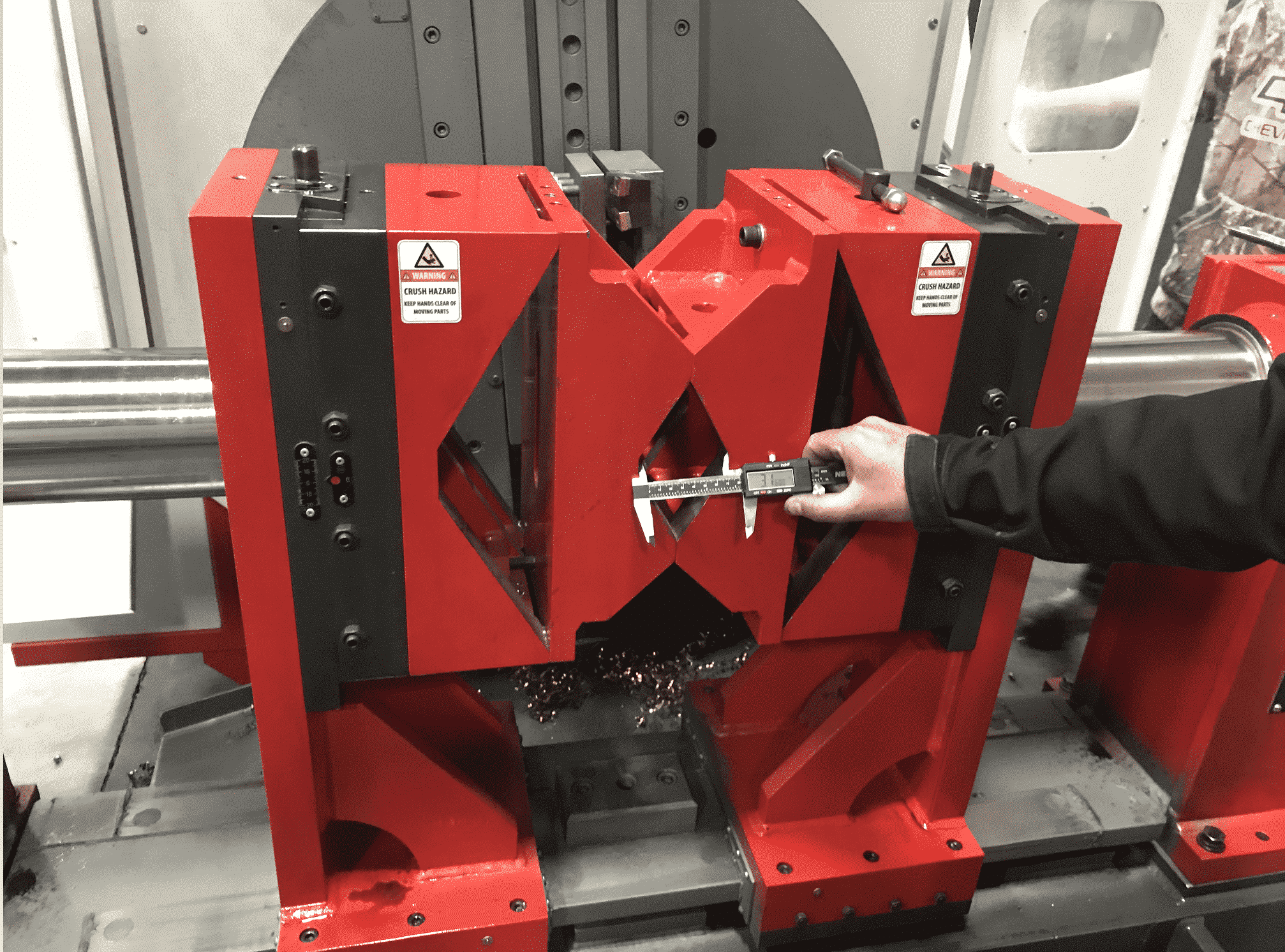

  • PSM 32 inch vise minimum closeing

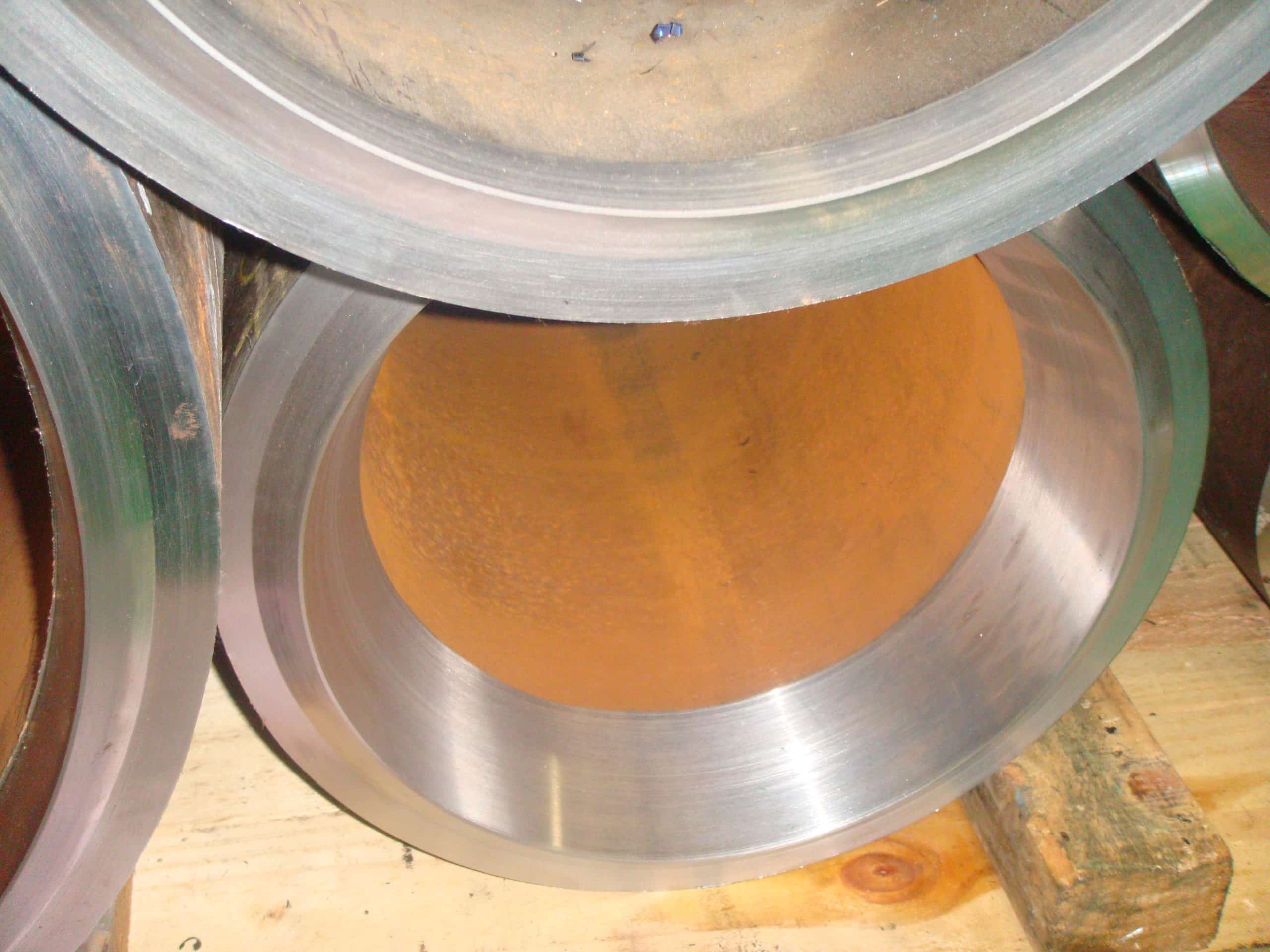

  • Bevel Shape 3 scaled

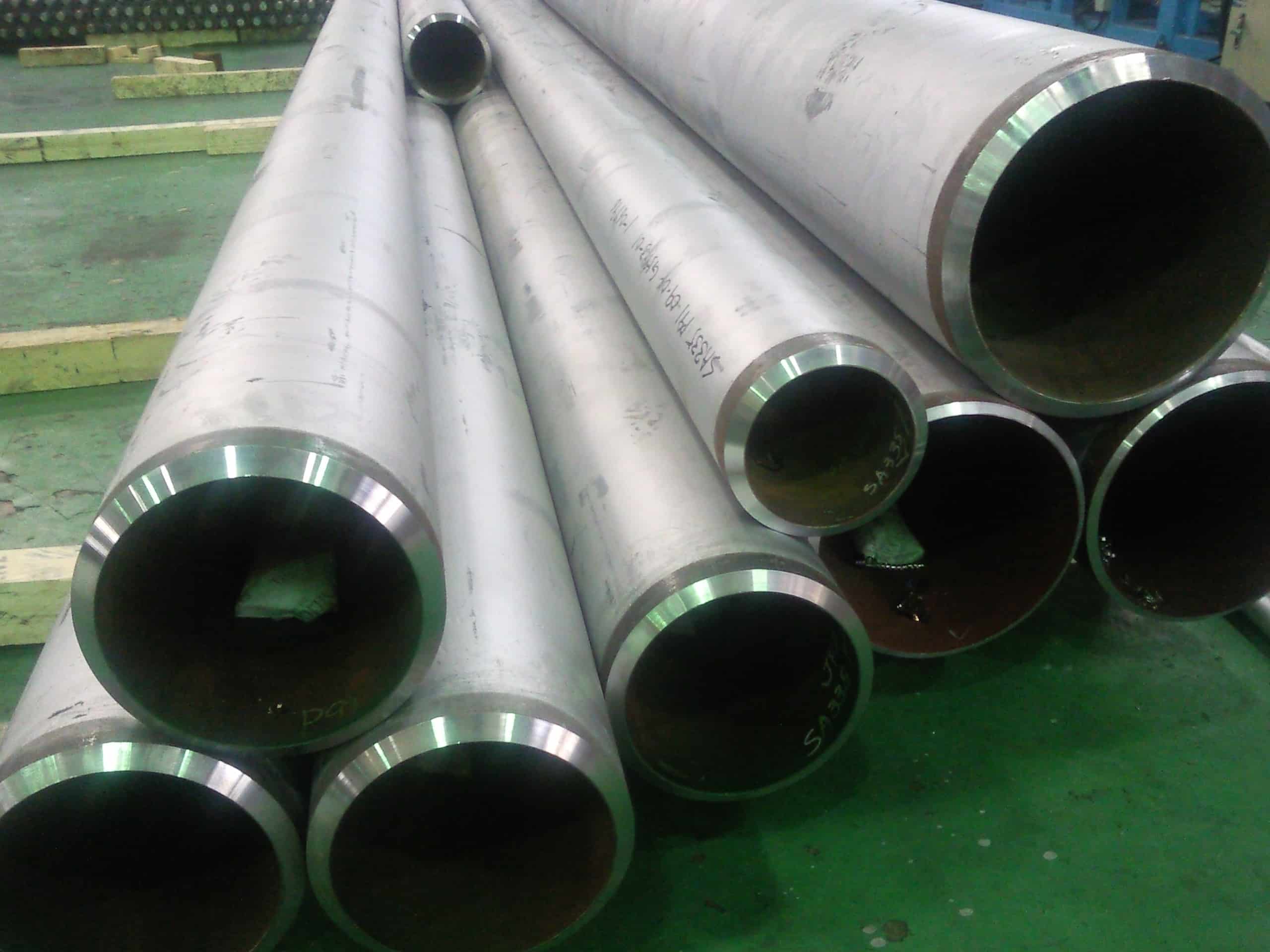

  • Bevel Shape 6
  • 2017 01 25 00.50.07 2
  • 2017 01 25 00.47.22
  • 1

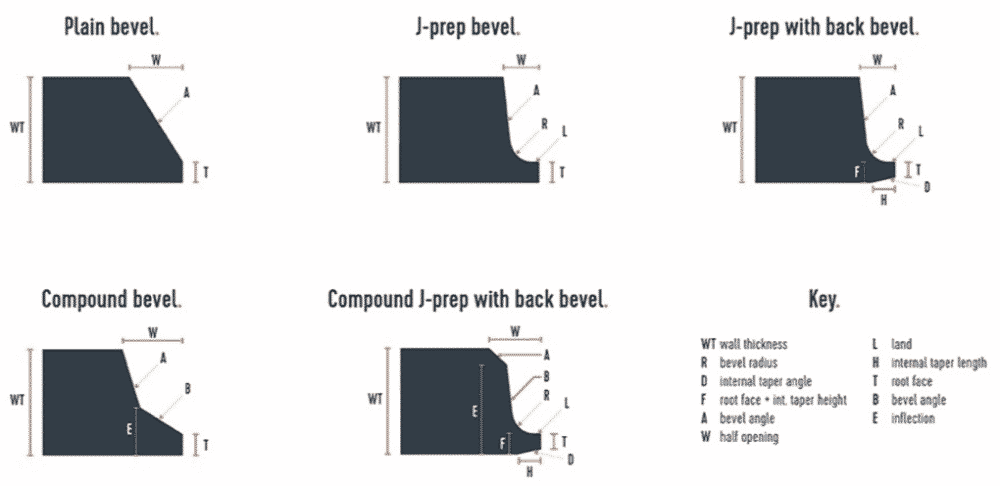

  • bevel types

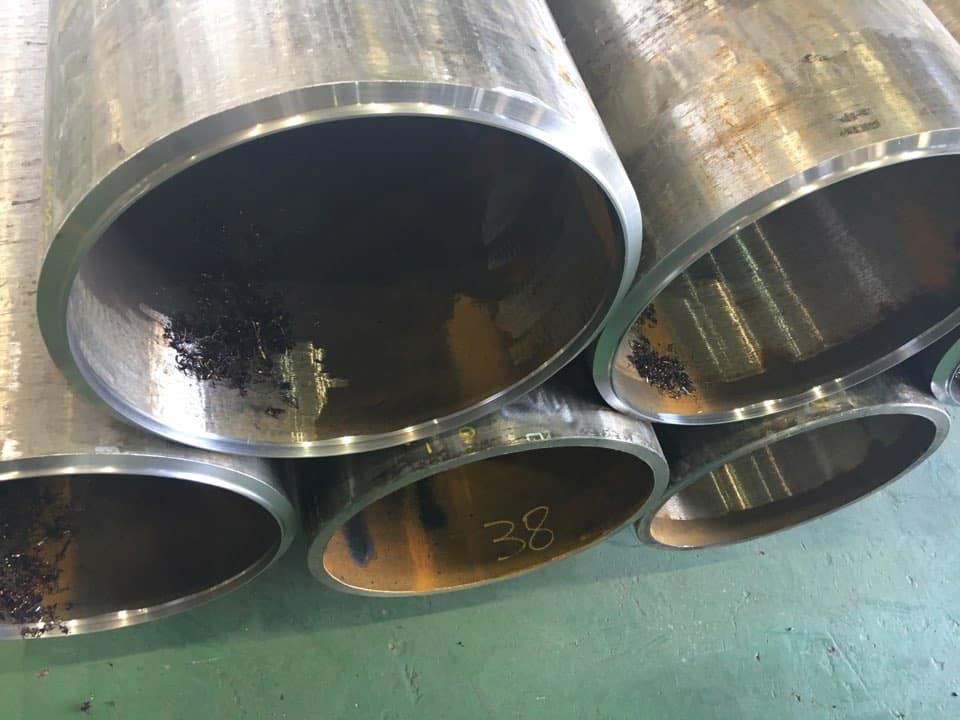

  • Bevel Shape 8

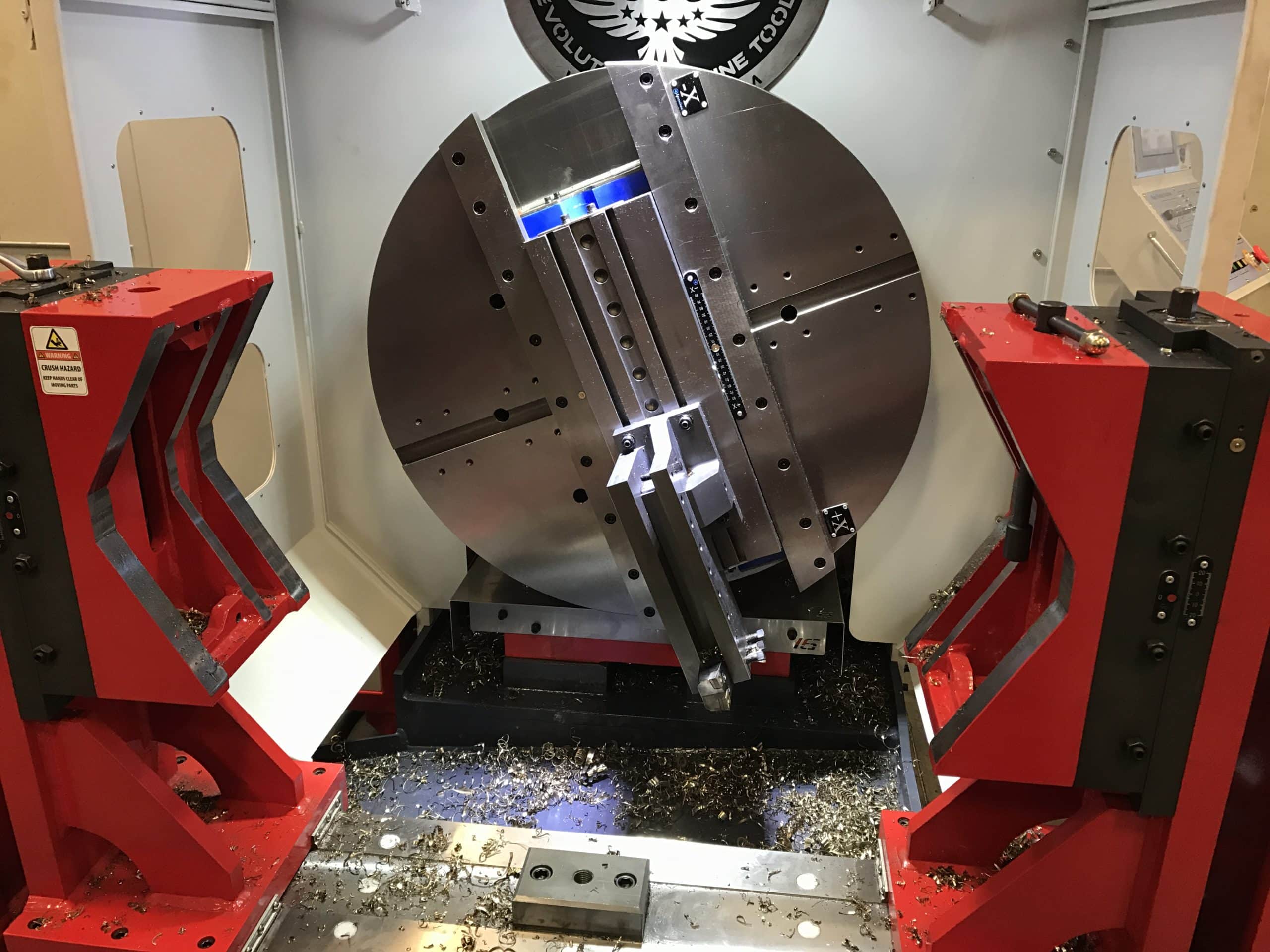

  • 2017 06 22 15.25.43 scaled

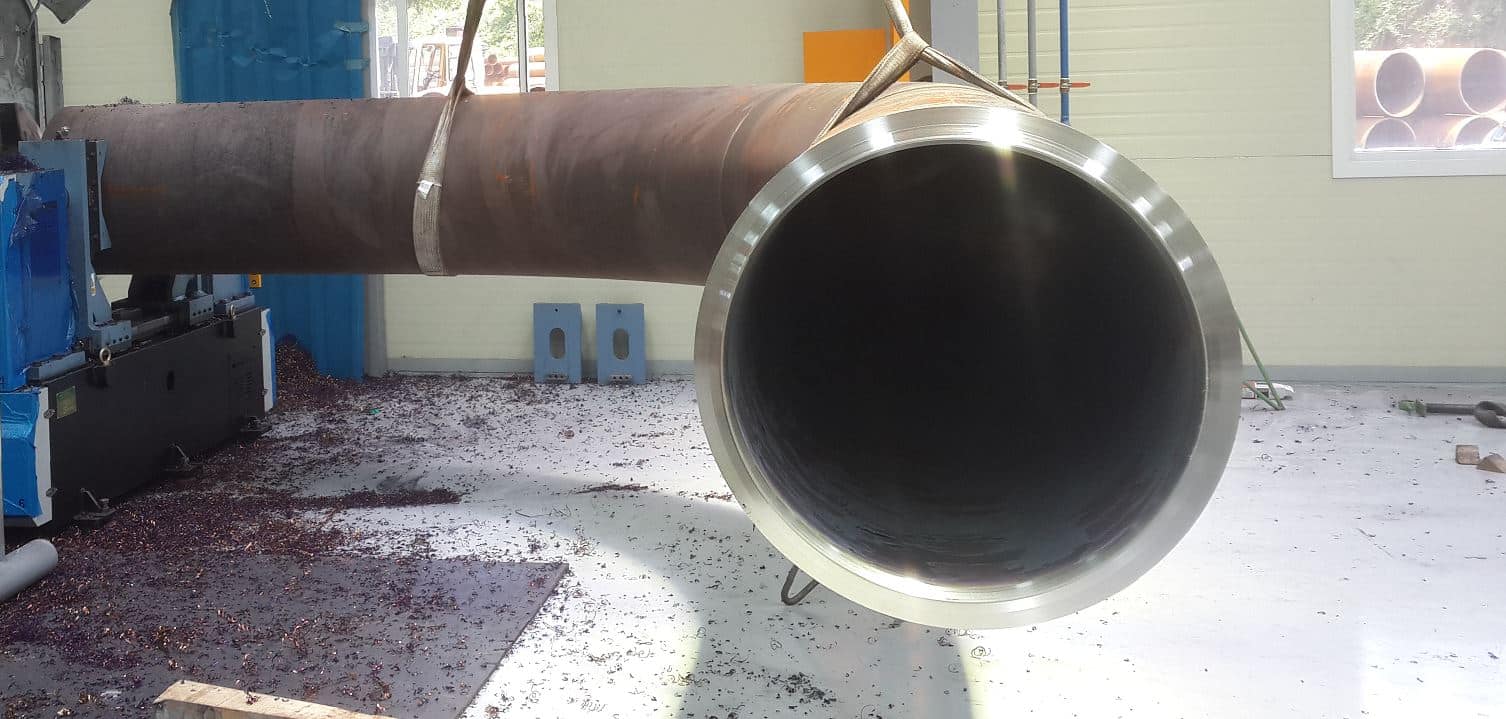

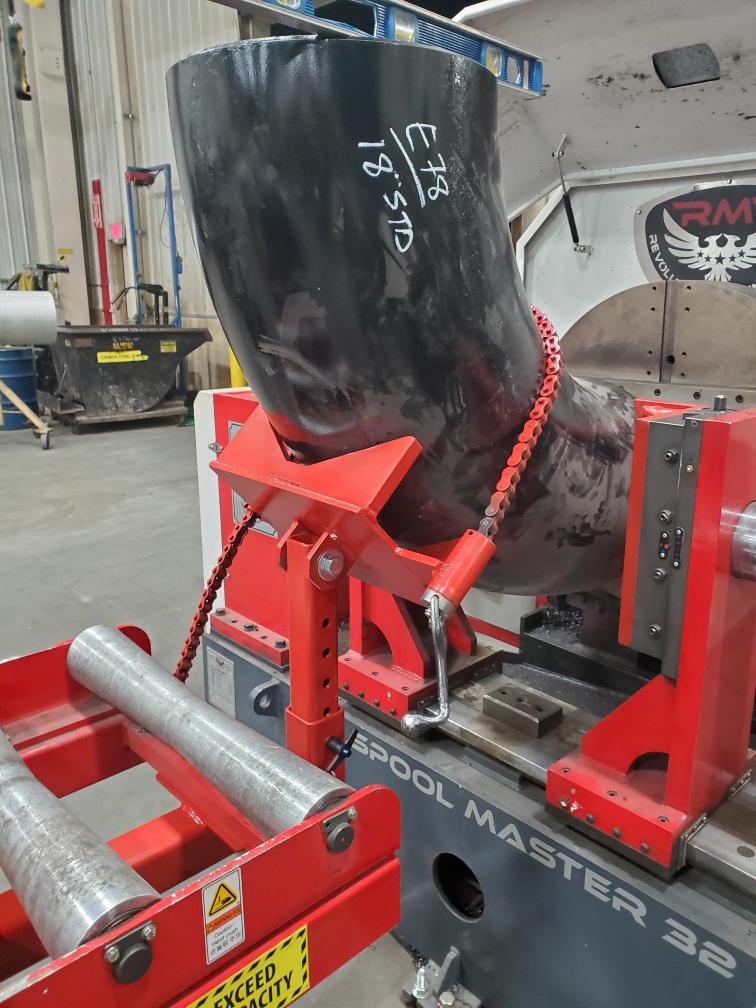

  • bent pipe
  • 2020 01 27 10.20.54 RMT
  • systems

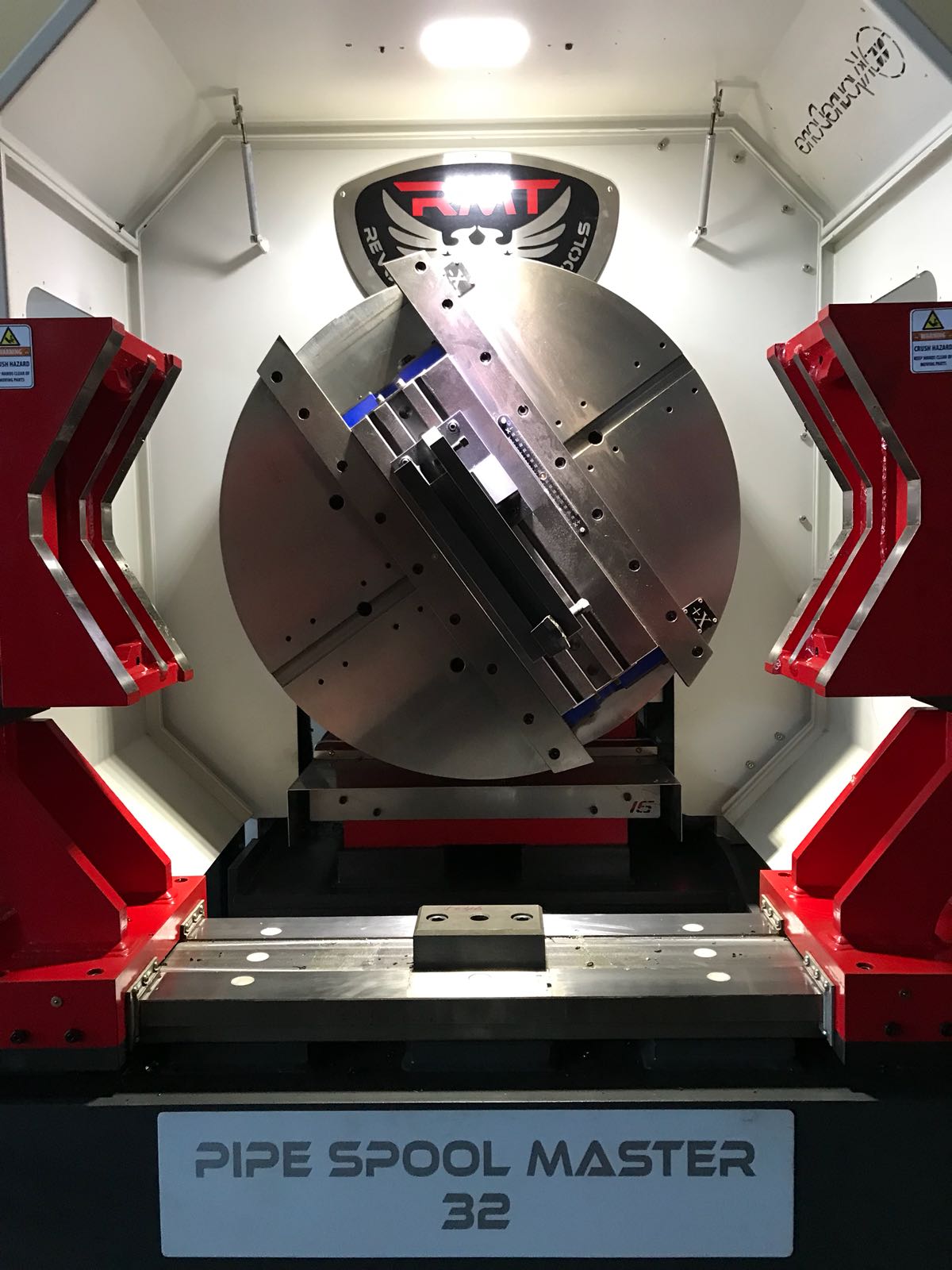

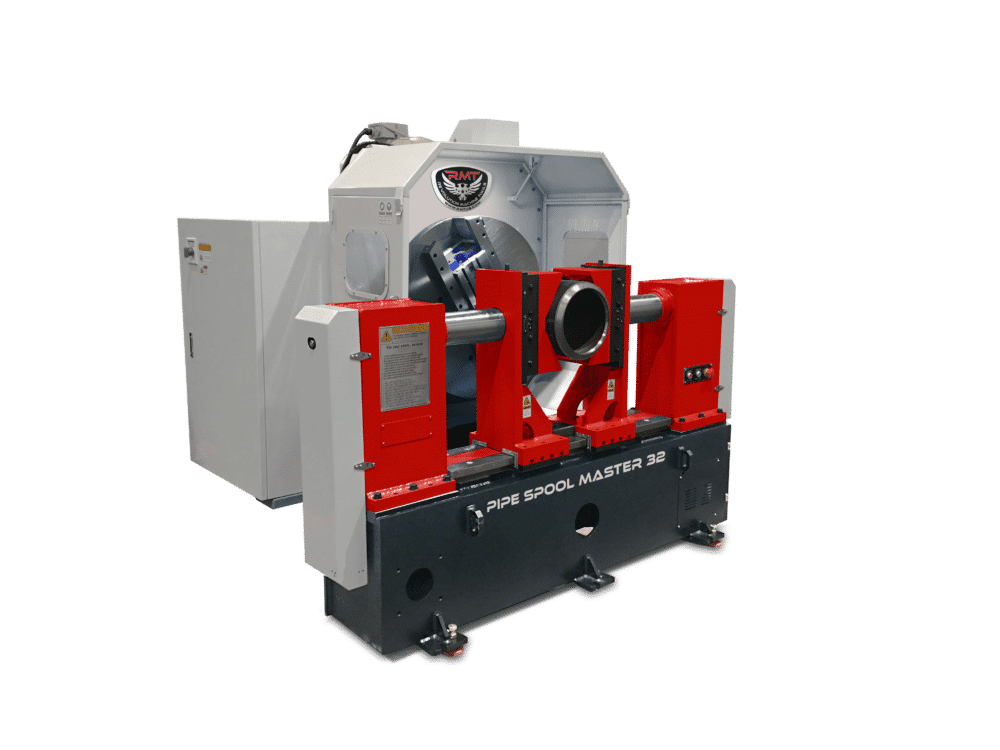

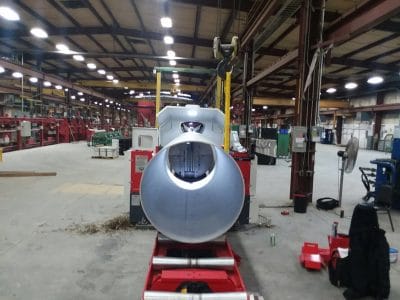

Pipe Spool Master 32 *Our Most Popular CNC Beveling Machine*

  • CNC KD Control Standard
  • CNC Beveling, CNC Boring, CNC Facing (Threading with Upgrade to CNC Fanuc or Siemens Control)
  • Machine Capacity OD 6″ – 32″ (With Optional, Vice Jaws – Capacity down to 1″)
  • Wall Thickness Capacity 3.9″ (One Setup)
  • Spindle RPMs Max 150 RPM
  • X Axis Stroke 5″
  • Z Axis Stroke 7″ (Optional: Up to 24″)

Description

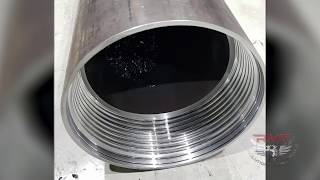

The PIPE SPOOL MASTER 32 is the workhorse for any pipe fabrication shop. Designed to put complex or simple bevels on your pipes 6”-32” within minutes. A superior finish over traditional methods and one that your welders will love on wall thicknesses up to 3.9” (In one setup – with multiple setups wall thickness is unlimited) Your J, U & V bevels, including radiused bevels are now easily programmed and processed in minutes rather than hours. With the upgraded controller you can even thread the ends of your pipe or tubes. The PIPE SPOOL MASTER 32 is revolutionizing the pipe fab industry and will dramatically increase your shop’s safety, efficiency and your company’s profitability.

RMT-REVOLUTION-MACHINE-TOOLS-PIPE-SPOOL-MASTER-32




Load More Pipe Spool Master Videos...

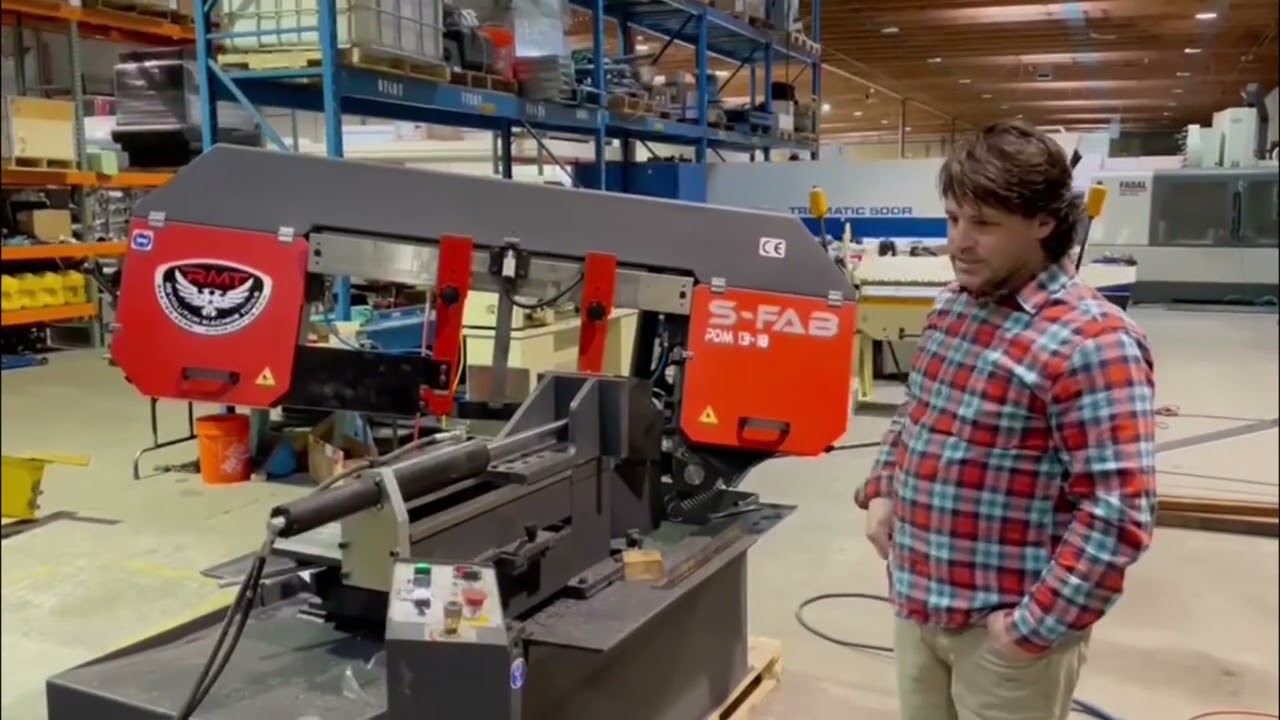

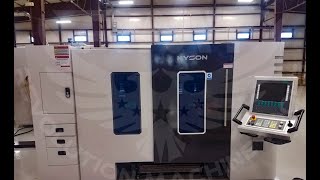

Similar Machine
